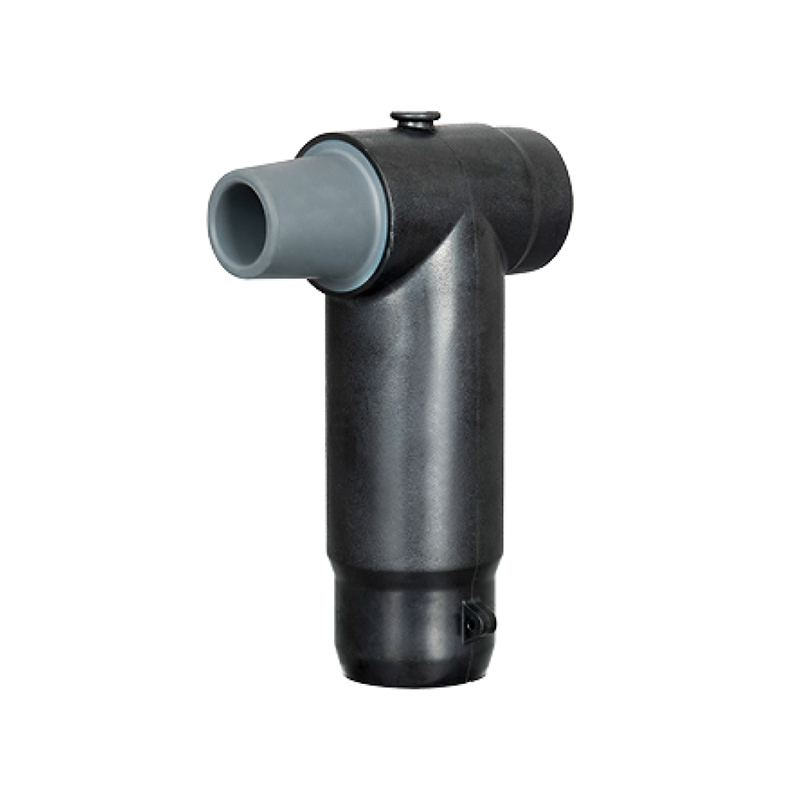

24kV / 630A Rear Joint T-Body
Specifications
| ⚫Maximum Voltage Class (Um) | 24 kV |
| ⚫AC 5 Minute Withstand | 54 kV |
| ⚫ Minimum Corona Voltage Level | 20 kV < 3pC |
| ⚫ BIL and Full Wave Crest (Impulse) | 125 kV |
| ⚫Thermal Short Circuit (Conductor, 2 sec.) | 23 kA / 2s |
| ⚫Dynamic Short Circuit (Conductor, 10 sec.) | 82 kA / 10ms |
| ⚫Continuous Current | 630 A |
| ⚫Overload Current (8 hours maximum) | 900 A |
KEY FEATURES
⚫Provides a fully shielded and submersible connection when mated with the proper bushing or plug.
⚫Type “C” 630A Interface.
⚫Mounting can be vertical, horizontal, or any angle in between.
⚫No minimum phase clearance requirements.
⚫100% electrical tested at factory.
Application
The oukepu T-Body Connectors terminate polymeric cable to dead front apparatus such as transformers, switchgear, and other equipment. Suitable for both indoor and outdoor use, they can be utilized with all polymeric cable types (XLPE, EPR, etc.) and conductors of either copper or aluminum at voltages of 24 kV
