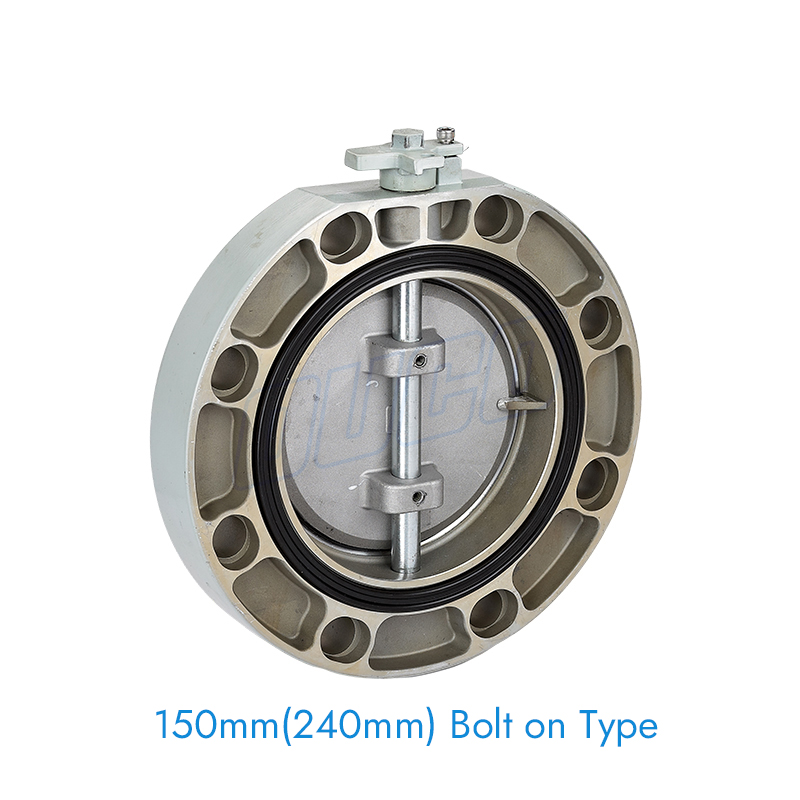

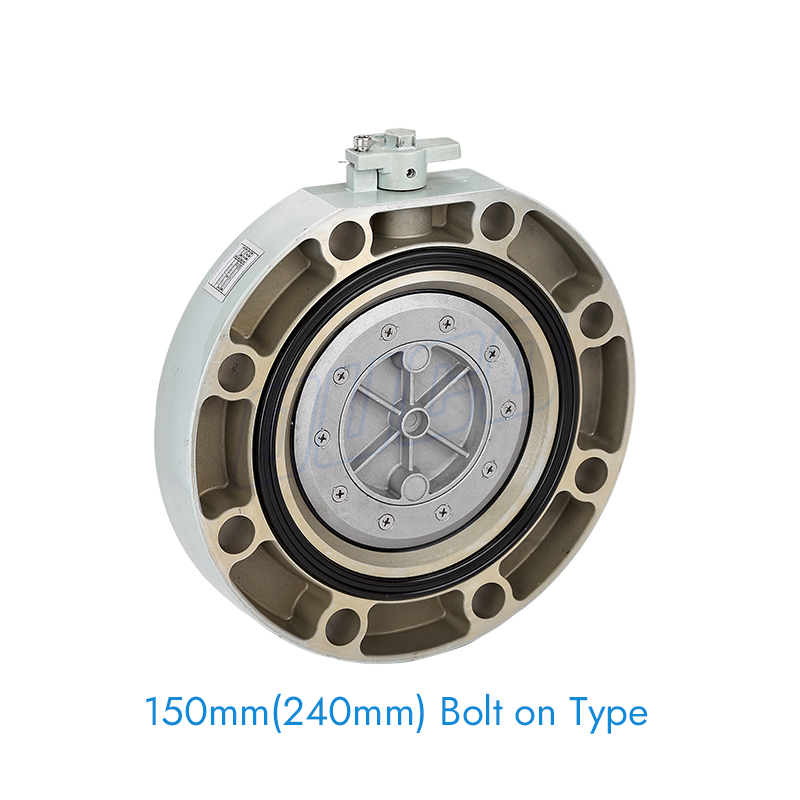

150mm(240mm) Bolt on Type With Aluminium Body, Zero Leakage

OUWEI > Winding Wire & Transformer Radiator > Radiator Valves for Transfomer > 150mm(240mm) Bolt on Type With Aluminium Body, Zero Leakage

150mm(240mm) Bolt on Type With Aluminium Body, Zero Leakage

Technical Specifications

⚫Leakage:	No leakage at full vacuum or 1kg/cm² oil pressure.
⚫Ambient Temperature:	-20°C to +80°C Standard.*
⚫Oil Temperature:	-20°C to +110°C Standard.*
⚫Mounting Bolts:	Optional – MS bolts zinc plated to 20microns.
⚫Mounting Gasket:	Two “O” Rings supplied with each valve.

Description:

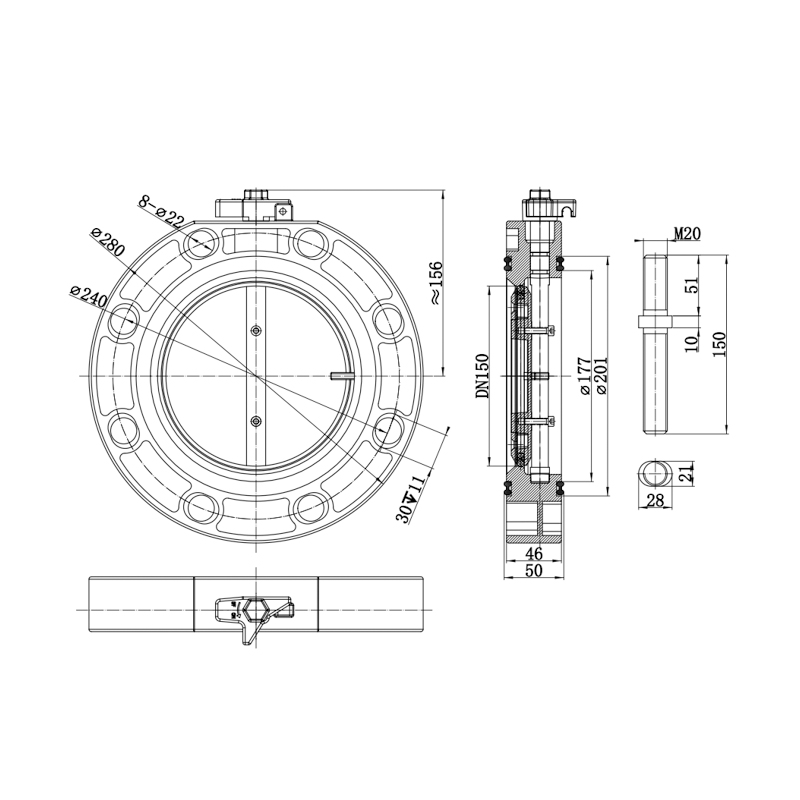

The valve mainly consists of machined flange, flap, spindle and locking cap. The flap is machined to fit the bore. The spindle is riveted to the flap and can be rotated in either direction to operate the valve. The cap on top of spindle locks the valve in the open or closed position, which is indicated on the exposed plate marked open/shut.

Features

⚫Aluminium flap with “O” Ring ensures zero leakage when the valve is closed.
⚫Optional M16 fixing screws.
⚫Mounting gasket supplied with the valves.
⚫Spring loaded screws with three “O” Ring provides fool proof sealing from shaft.
⚫Very light and sturdy construction.
⚫NBR “O” Ring easily replaceable.
⚫Pressure die cast Aluminium body, flap and operating handle.
