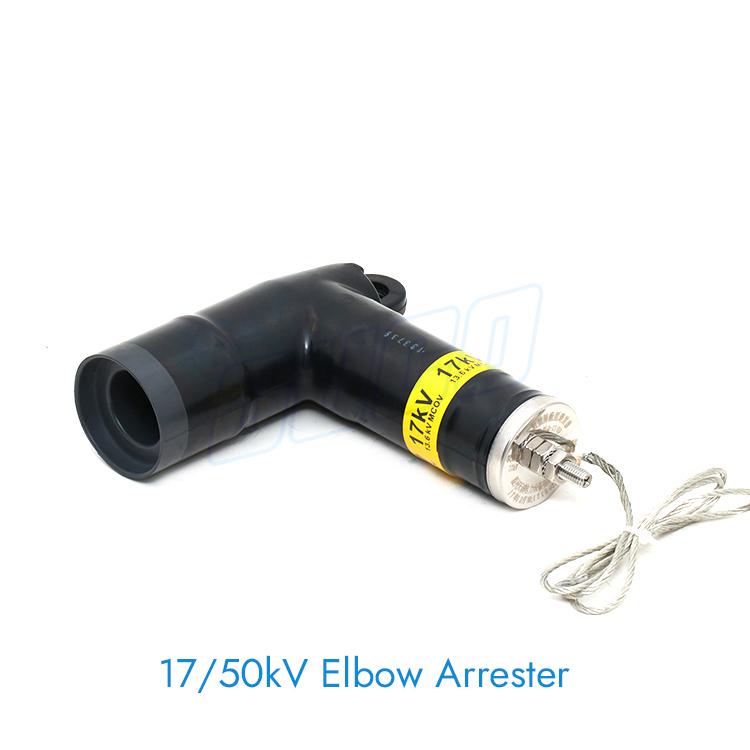

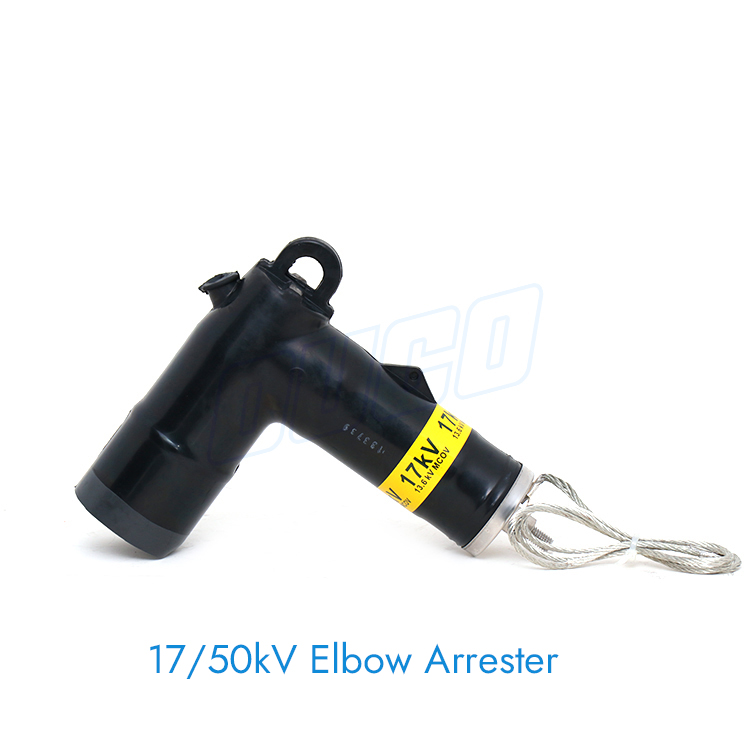

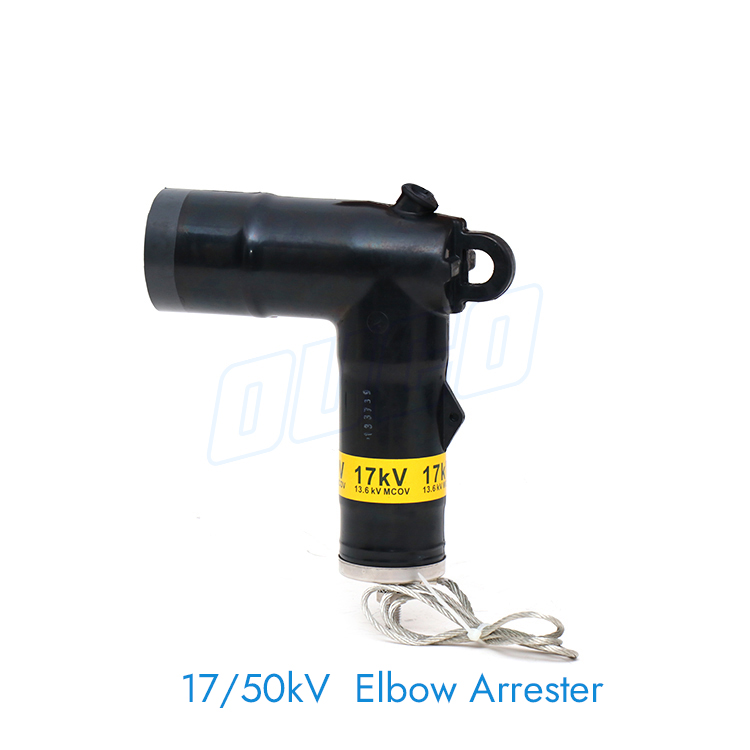

17/50kV Elbow Arrester
Specifications
| ⚫Maximum Voltage Class (Um) | 17 kV |
| ⚫Nominal Discharge Current of Arrester | 5 kV |
| ⚫ Residual Voltage of Nominal Discharge Current | ≤ 50 kV |
| ⚫Maximum Continuous Operating Voltage | 13.6 kV |
| ⚫Voltage of DC 1mA Current | ≥ 25 kV |
Application
The Oukepu Elbow Arrester combines metal oxide varistor module in a rubber elbow to provide overvoltage system protection.
The Oukepu Elbow Arrester housing design meets IEEE 386 standard. It is molded with high qualit y peroxide – cured insulating and semi-conducting rubber and is fully interchangeable with competitors’ products that also meet IEEE standard 386.
Oukepu Elbow Arresters are used on underground s ystems in pad-mounted transformer and entr y cabinets, vaults switching devices and other insulations to provide shielded deadfront arrester protection.
Installing Oukepu Elbow Arrester at both ends of an open point on a loop system and the end of a radial system protect equipment and extend cable life.
