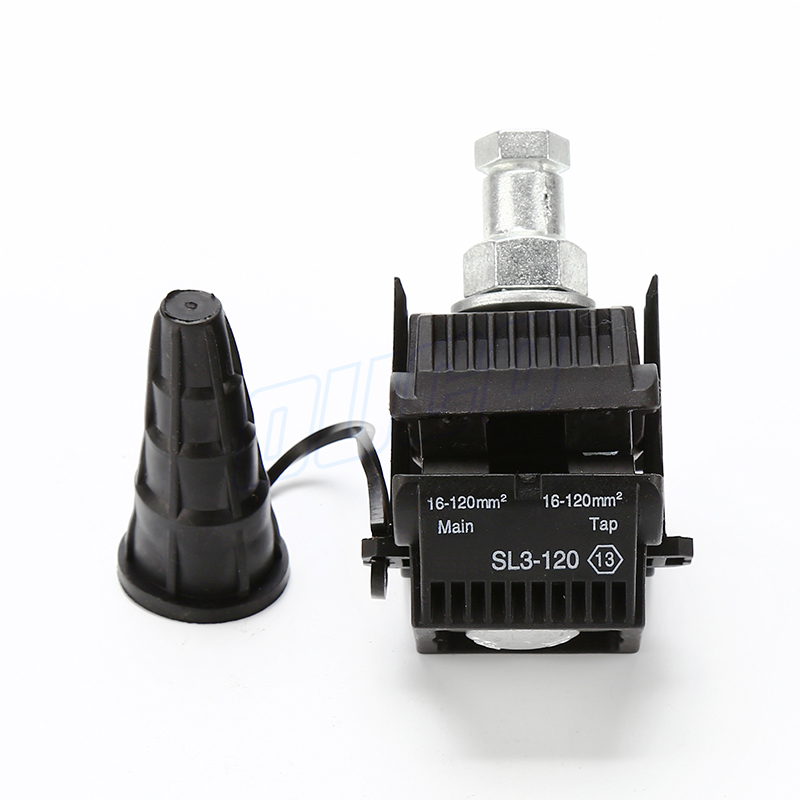

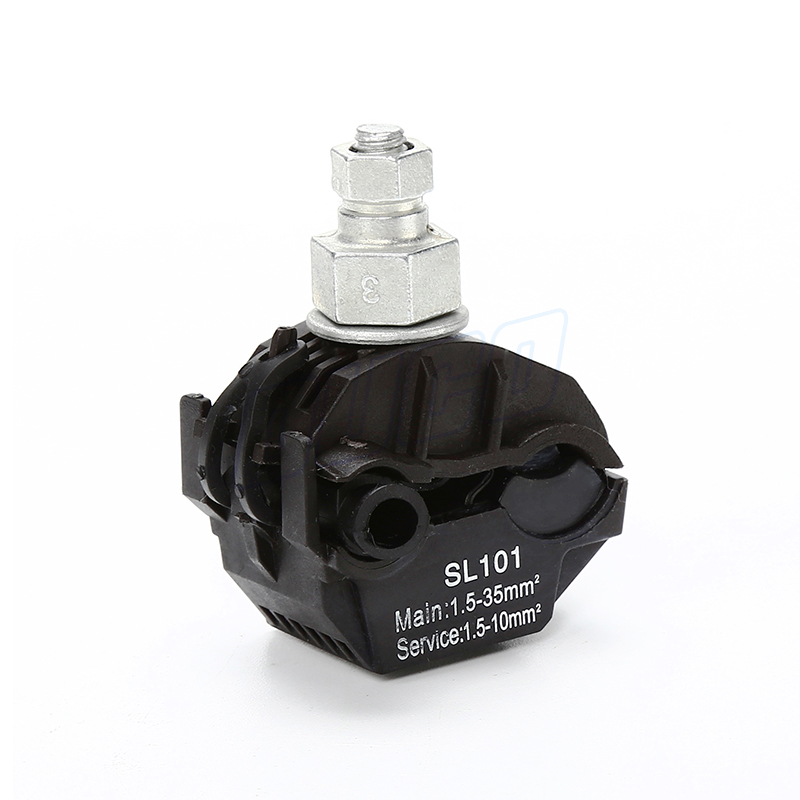

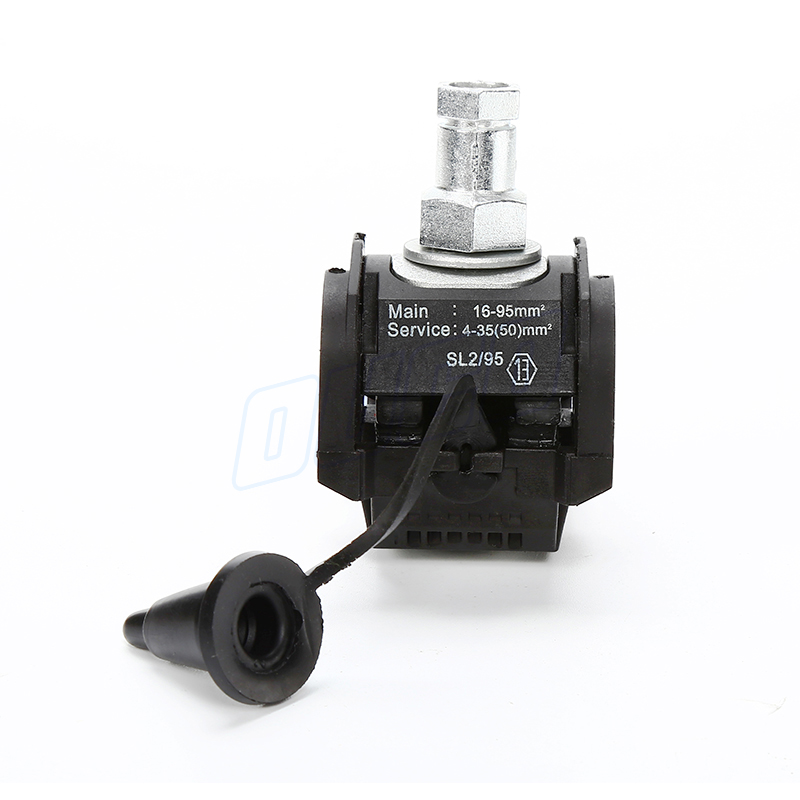

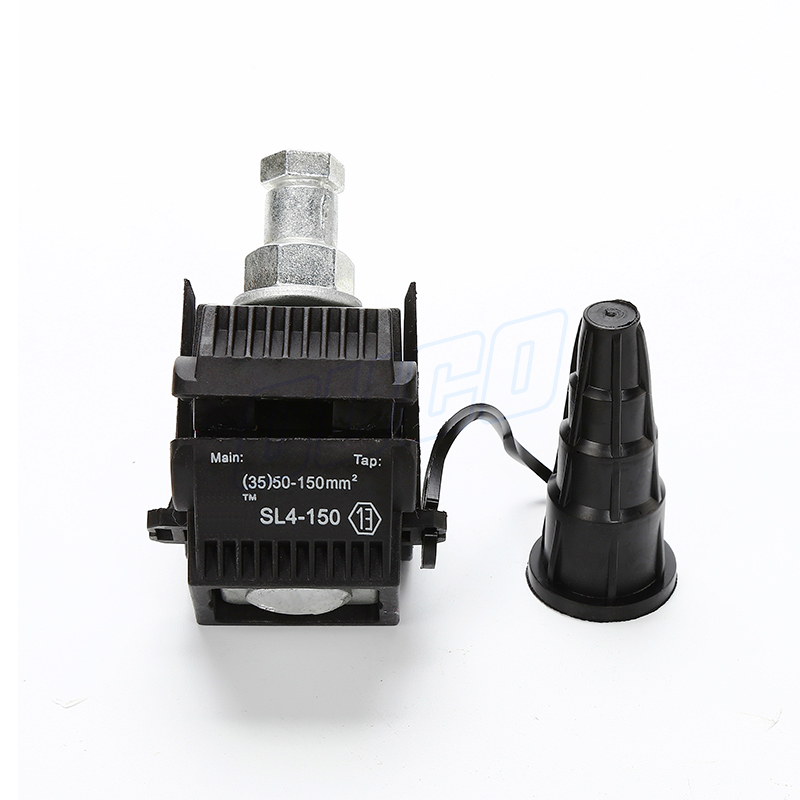

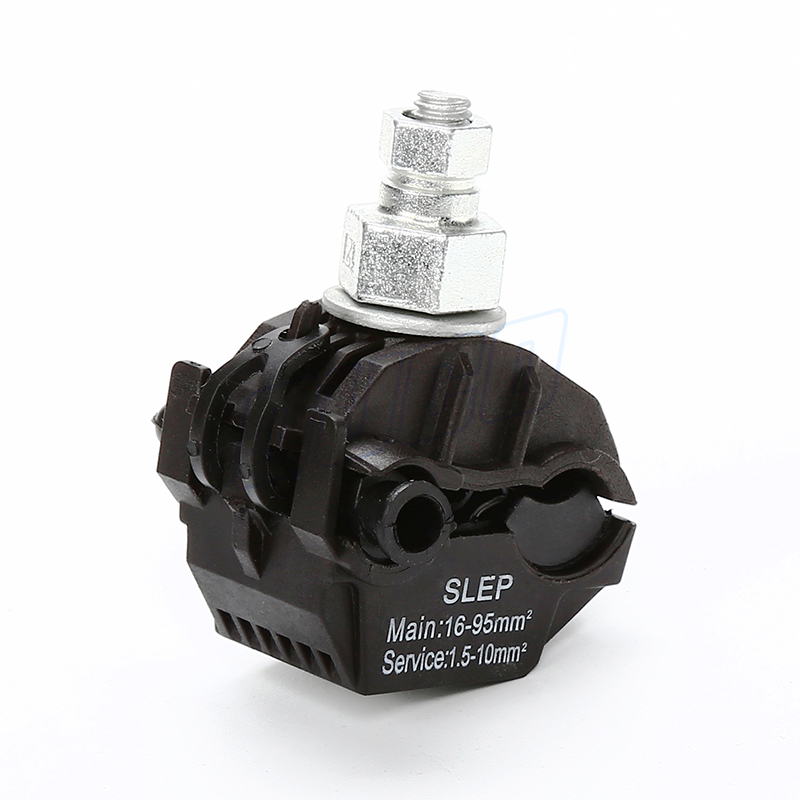

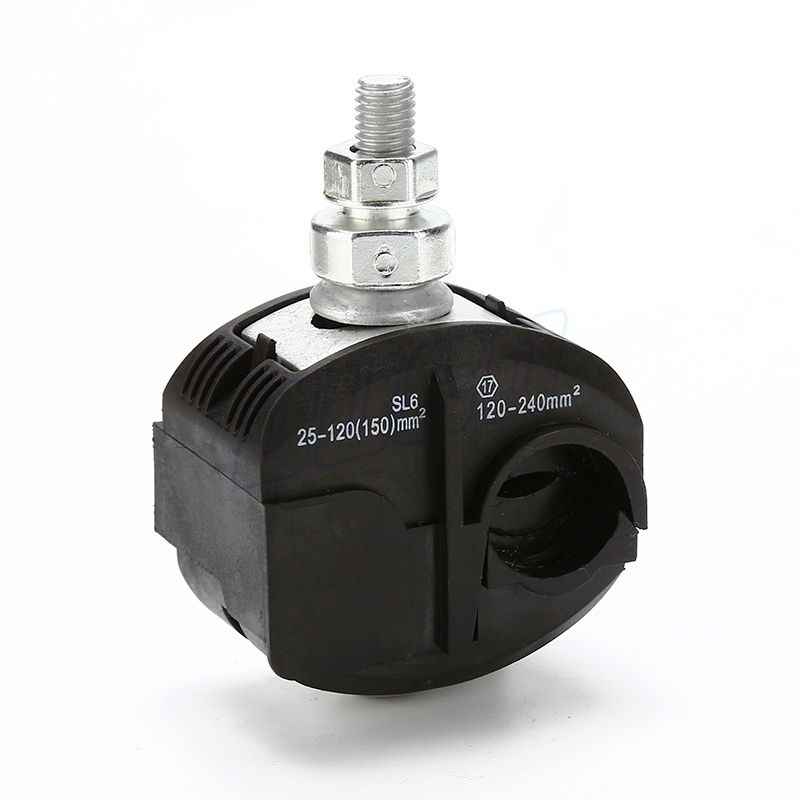

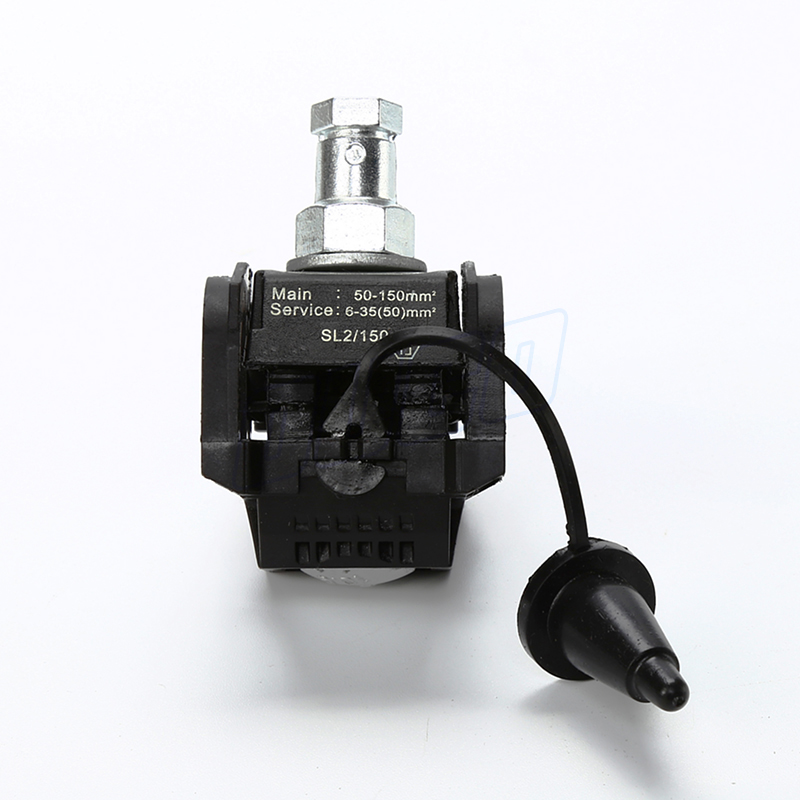

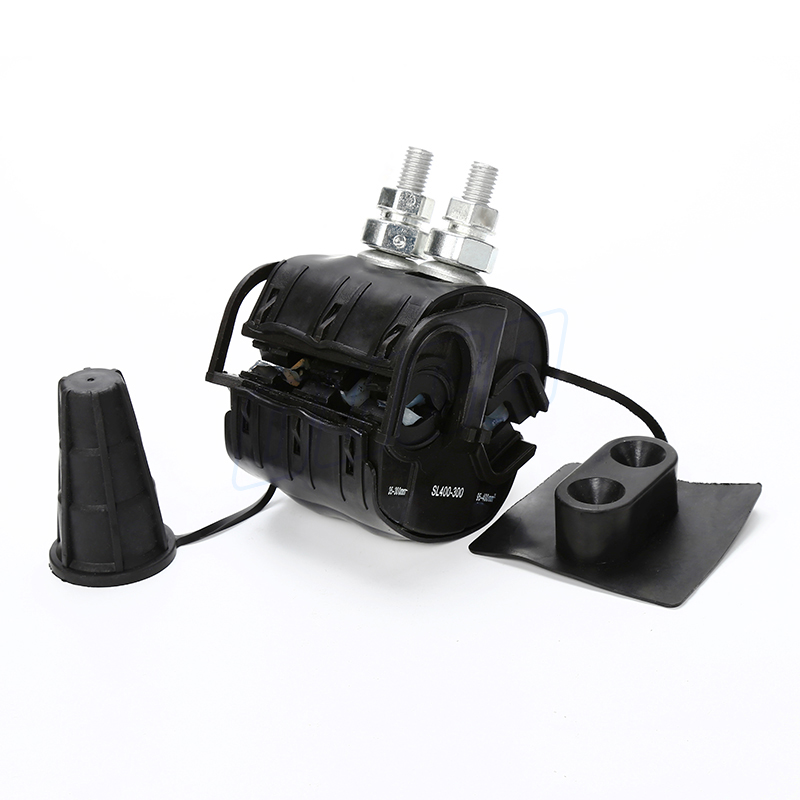

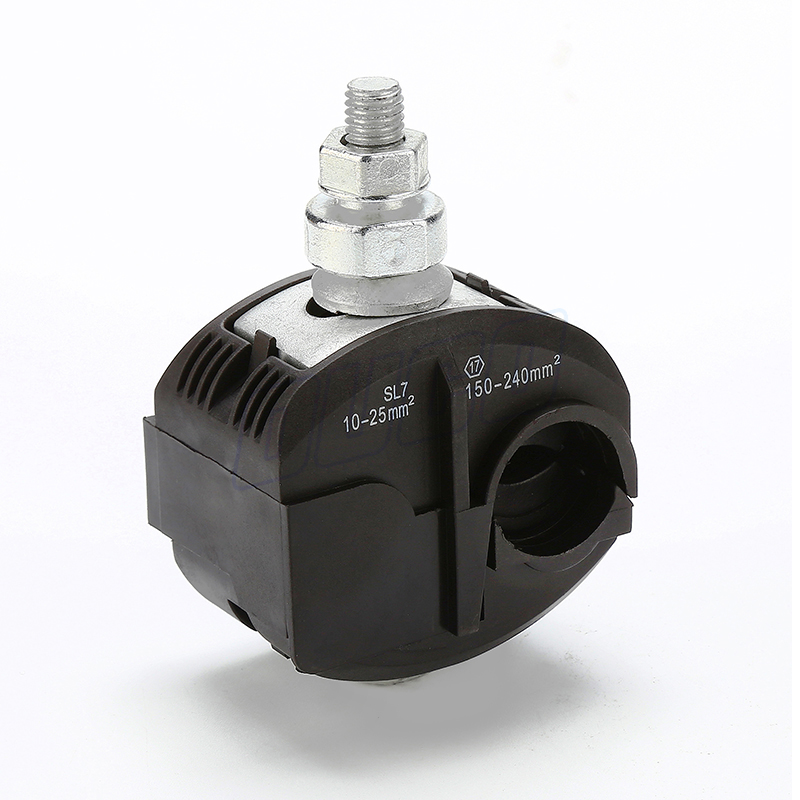

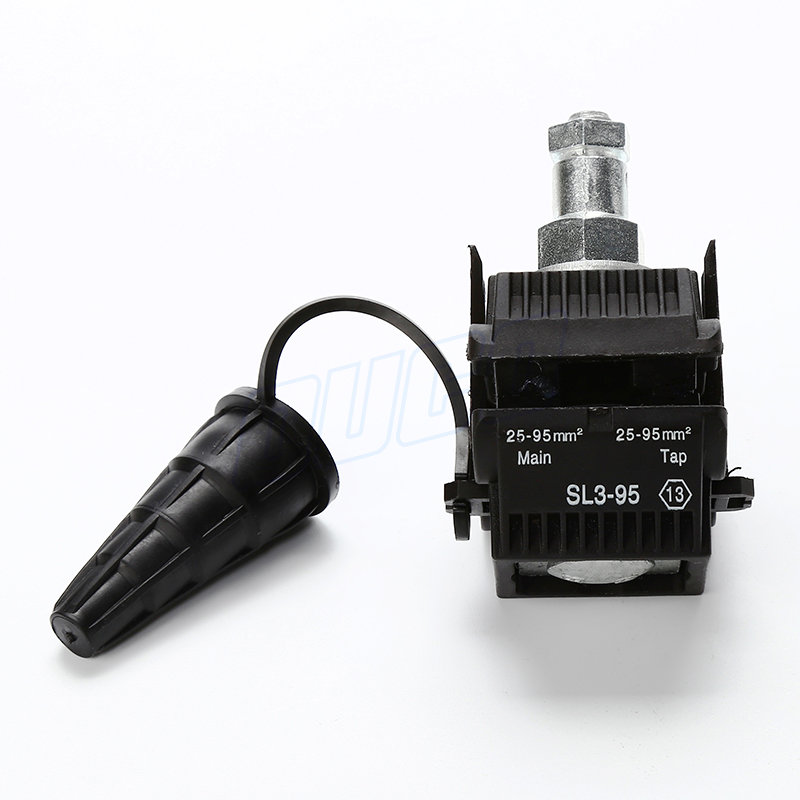

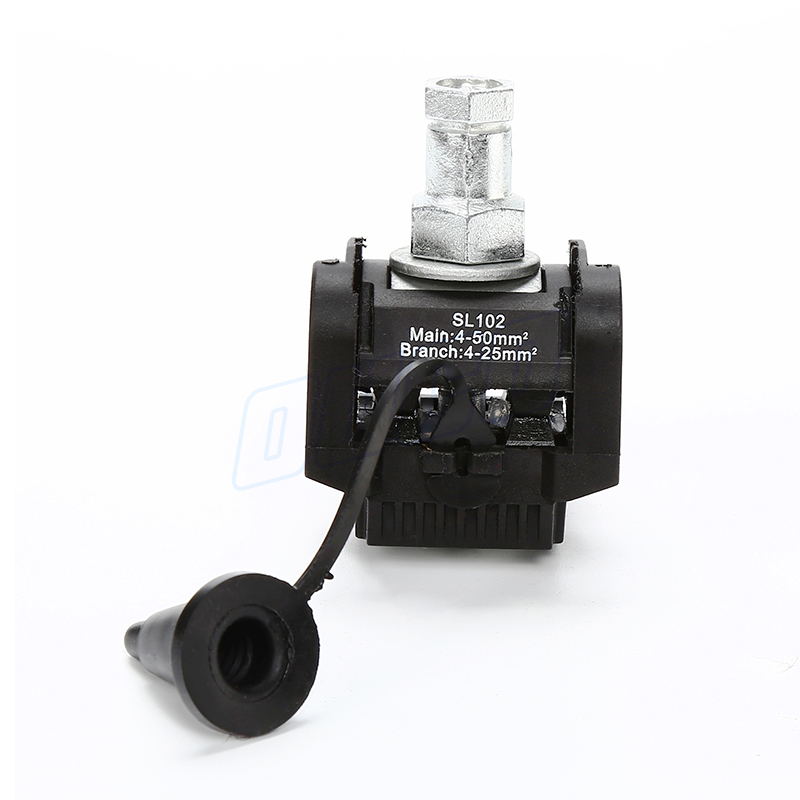

1kv Insulation Piercing Connector
Description
The waterproof insulation piercing connectors are suitable for majority types of LV ABC conductors as well asconnections to service and lighting cable cores. When tightening the bolts, the teeth of the contact plates penetratethe insulation and establish a pefect contact. The bolts are tightened until the heads shear off. Tightening torqueguaranteed(fuse nut).Stripping of insulation is avoided.Service condition:<1kV,50/60Hz,-10'C to 55°CStandard:lEC 61284,EN 50483,IRAM2435,NFC33 020.
Material
Body: Thermoplastic polyamide 66 with fiberglassConnecting bridge: Copper tinned, Brass tinned, ASealing parts: Flexible PVC
End cap: Flexible PVC
Grease: Silica gel
Bolt: Hot dip galvanized steel, 8.8 grade Washer, Nut: Hot dip galvanized steel
Fuse nut: Zinc alloy
Features
Tested for watertightness at a voltage of 6 kV for 30 min in a water bathPotential free tightening bolts allow safe installations on life lines.Bimetallic, suitable for aluminium and copper conductorsLong neck 13 mm shear head nut ensuring reliable installationsComponents not isolated, end cap attached to body
Insulation material made of weather and UV resistant glass fibre reinforced polymer
