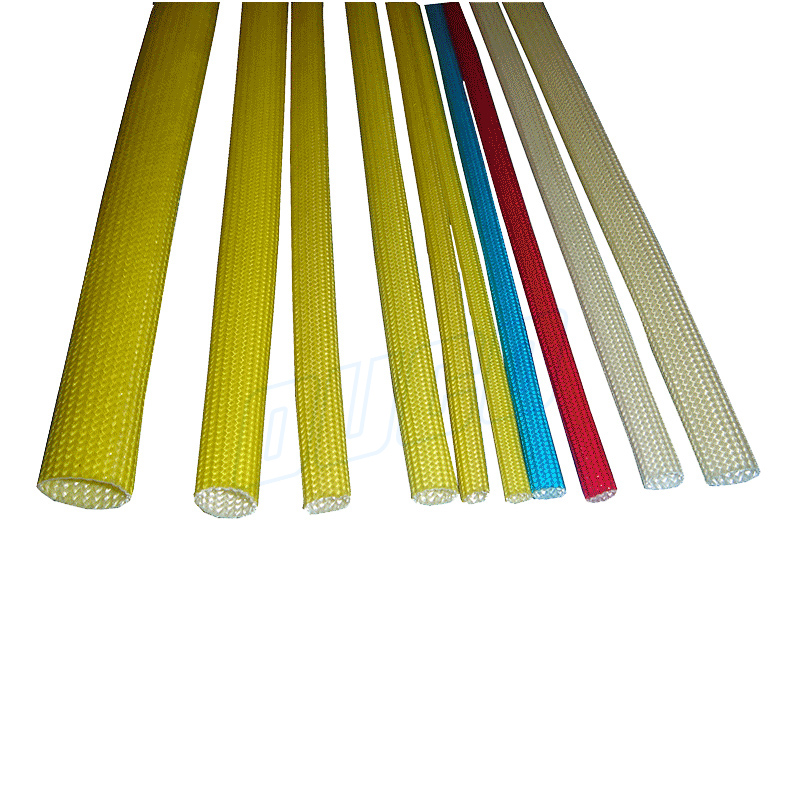

Acrylic-Fiberglass Sleeving
Main Parameters
| ⚫ Model: | 2740 |
| ⚫Insulation class: | F class (155 °C) |
| ⚫ Color： | Yellow, Natual, Red,etc |
| ⚫lnner Diameter(mm) | 1, 1.5, 2, 2.5, 3, 3.5, 4, 5, 6, 7, 8, 9, 10, 12, 14, 16, 18, 20, 22, 24, 25, 27, 30. |
| ⚫Voltage: | 1.5kv,4kv. |
Brief Introduction of Acrylic Coated Fiberglass Sleeve：
Acrylic-F fiberglass sleeving is a Class 155°C electrical insulation,
manufactured by impregnating and coating a finely braided fiberglass
sleeving with a dielectric film of acrylic resin. Acrylic-F sleeving is
recommended as a universal coated sleeving for all thermal requirements
from Class 105°C through Class 155°C.
Available Grades
ACRYFLEX-F sleeving is available in the following grades. The dielectric
breakdown voltages given are measured according to ASTM D149,
using a rate of voltage increase of 500 volts/second.
Grade B 4,000 Volts Min. Avg. 2,500 Volts Min. Indiv.
Grade C-2,500 volts Min. Avg. 1,500 Volts Min. Indiv.
Applications:
2740 acrylic coated fiberglass sleeving is widely used in fractional and integral horse-power motors on leads and crossovers. Other uses exist in dry and oil-filled
transformers, relays of many types, radio and television circuits,welding apparatus and many others.
