Copper winding wires are copper conductors, such as wires or foils, designed to create winding structures for electrical and power equipment. These wires are widely used in motors, transformers, and generators. Known for their outstanding electrical and thermal conductivity, copper winding wires improve the efficiency and stability of electrical devices.
Benefits of Copper Winding Wires
Copper winding wires can prevent failures caused by overheating. These wires also minimize electromagnetic interference between devices and their surrounding environment, improving the equipment’s resistance to external disturbances. Enameled copper wires, due to their low resistance, facilitate higher energy transmission in motors and transformers, significantly reducing energy loss.
Durability and insulation are core advantages of copper winding wires. They exhibit excellent corrosion resistance and long service life, making them suitable for demanding environments. Modern enameled copper wires feature multi-layer polymer insulation, allowing them to withstand temperatures of up to 250°C. Thicker wires are often reinforced with polyimide or fiberglass tape to improve insulation. This reinforcement is further enhanced with impregnated varnish, ensuring long-term reliability and durability.
Main Applications of Copper Winding Wires
Power Transmission
Copper winding wires carry and transmit electrical energy in power systems. Devices such as transformers, generators, and electric motors rely on copper winding wires for efficient energy transfer. Copper winding wires, with their high electrical conductivity, minimize resistance losses and enhance energy transmission efficiency. This ensures consistent and reliable power delivery across various electrical systems.
Electronic Devices
Copper winding wires are common used in electronic devices for components such as sensors, circuit boards, and relays. These wires must exhibit excellent electrical and thermal conductivity to ensure the proper functioning of electronic devices. Their superior conductivity and thermal performance help reduce resistance and heat loss, enhancing the efficiency and reliability of electronic equipment.
Magnetic Field Generation
Copper winding wires generate magnetic fields through the flow of current and are essential in electromagnetic devices and systems. Applications include electromagnets, electric motors, and electromagnetic sensors, all of which depend on copper winding wires for magnetic field generation. The high conductivity and magnetic properties of copper enhance the interaction between current and magnetic fields, improving the performance of electromagnetic equipment.
Heating Equipment
Heating equipment, such as electric furnaces, water heaters, and heating tubes, use copper winding wires to generate thermal energy. The excellent electrical and thermal conductivity of copper ensures efficient energy conversion from electrical to thermal energy, enhancing the heating performance and efficiency of such equipment.

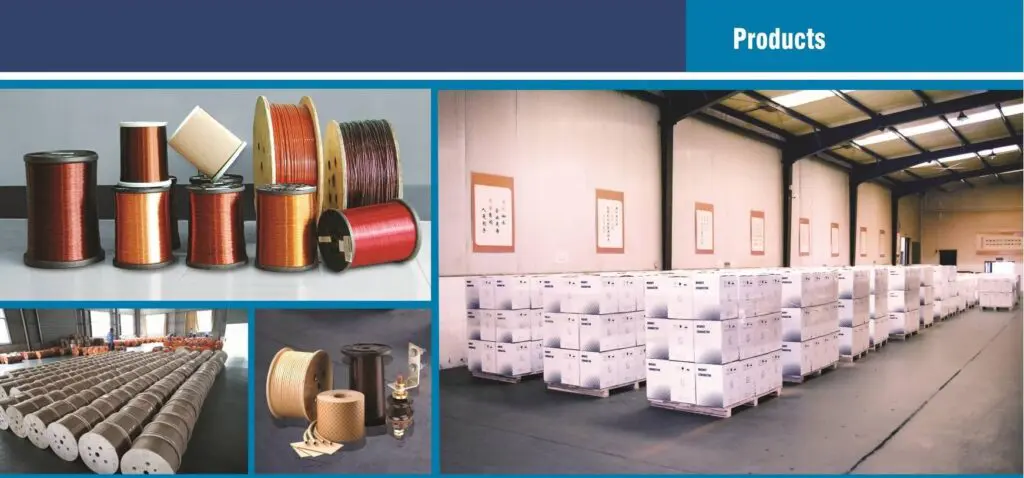

Types and Characteristics of Copper Winding Wires
Copper winding wires support various types of enameled insulation layers, enabling diverse electrical, thermal, and mechanical properties. Thanks to copper’s high ductility and malleability, enameled copper wires can be manufactured in different shapes and specifications to meet a wide range of application requirements.
Classification by Shape
1. Enameled Round Copper Winding Wires
Copper, known for its exceptional ductility, can be drawn into round wires of various diameters. The current-carrying capacity of these wires varies depending on their diameter. For instance, finer wires are typically used in precision devices such as headphones and charging cables, while thicker wires are employed in high-load electrical equipment like transformers and motors.
- Characteristics: Diameter as fine as 0.2 mm for precision applications. Thicker wires are ideal for heavy-duty electrical equipment.
- Applications: Headphones, charging cables, transformers, motors, and other electrical devices.
2. Enameled Flat Copper Winding Wires
Enameled flat copper wires offer high current-carrying capacity and a compact design, making them ideal for high-efficiency applications in space-constrained environments.
- Characteristics: Rectangular shape that optimizes winding space utilization.
- Applications: Electric vehicle motors, transformers, and EV powertrain systems.
Classification by Insulation Layers
Enameled Copper Wires
Enameled copper wires are the most widely used type of copper wire in electrical applications. They are coated with a thin layer of insulation (enamel), offering reliable protection without adding significant bulk. Their compact and efficient design maximizes performance while meeting the diverse needs of various electrical and electronic systems.
- Polyester Enameled Copper Wires: Coated with polyester enamel, these wires provide good electrical insulation and thermal resistance up to 155°C, making them suitable for general-purpose applications.
- Polyesterimide Enameled Copper Wires: Featuring a polyesterimide coating, these wires offer enhanced thermal resistance up to 180°C and improved chemical resistance, making them ideal for demanding environments.
- Polyamideimide Enameled Copper Wires: These wires, coated with polyamideimide enamel, deliver superior thermal resistance up to 200°C and excellent mechanical strength, making them suitable for high-stress applications.
- Self-Lubricating Enameled Copper Wires: Designed with a self-lubricating layer, these wires reduce friction during high-speed winding, minimizing abrasion and improving manufacturing efficiency.
Polyimide-Insulated Copper Wires
Polyimide-insulated copper wires are known for their exceptional resistance to high temperatures and harsh chemicals. These wires are widely used in aerospace, automotive, and high-temperature industrial applications, where they must maintain integrity under intense thermal and chemical stress.
Fiberglass-Insulated Copper Wires
Fiberglass-insulated copper wires are designed for applications requiring superior thermal stability and mechanical strength. The fiberglass insulation provides excellent resistance to overheating and enhances the wire’s ability to endure high mechanical stresses, such as tension and vibration. These properties make fiberglass-insulated wires particularly well-suited for heavy-duty industrial equipment.
Paper-Insulated Copper Wires
Paper-insulated copper wires are commonly employed in high-performance electrical systems, including transformers and other specialized equipment. The paper insulation acts as an additional barrier, protecting the wire from electrical stress that could compromise its performance in high-voltage conditions. This type of insulation ensures durability and efficiency.

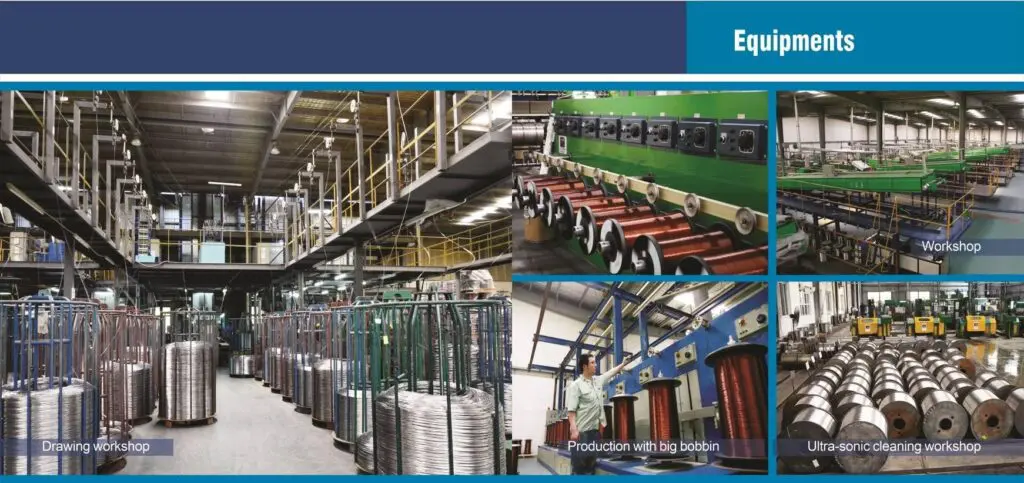

Manufacturing Process of Copper Winding Wires
Copper winding wires undergo several critical steps during the manufacturing process to meet specific performance and quality requirements. Below is a detailed explanation of these steps.
Wire Drawing
The manufacturing process begins with wire drawing, where high-purity copper rods are drawn through a series of precision dies to gradually reduce their diameter to the desired specification. For larger-diameter wires, multiple drawing passes are required. This process, classified as cold working, tightens the molecular structure of the copper, significantly enhancing its strength and hardness. Wire drawing enhances the mechanical properties of copper while ensuring precise diameters, making it suitable for various winding applications. This process establishes a solid foundation for the subsequent manufacturing steps.
Annealing
Once the copper wire is drawn to the final diameter, it undergoes annealing. This process involves heating the wire to a specific temperature and then allowing it to cool slowly to eliminate the hardening effects of cold working. Annealing makes the copper wire softer and more ductile, enhancing its flexibility and elongation. This step is crucial because non-annealed wires are prone to breakage or cracking during winding, which would compromise the quality and performance of the final product and pose risks during subsequent applications.
Insulation Coating
After annealing, the copper wire is coated with an insulation layer. Common insulation types include enamel coatings and polyimide layers. To further enhance performance, multi-layer coating processes are often employed. This design significantly improves the wire’s heat resistance, ability to withstand electrical stress, and stability during prolonged operation. The resulting insulated wire is reliable for use in a wide range of demanding environments.

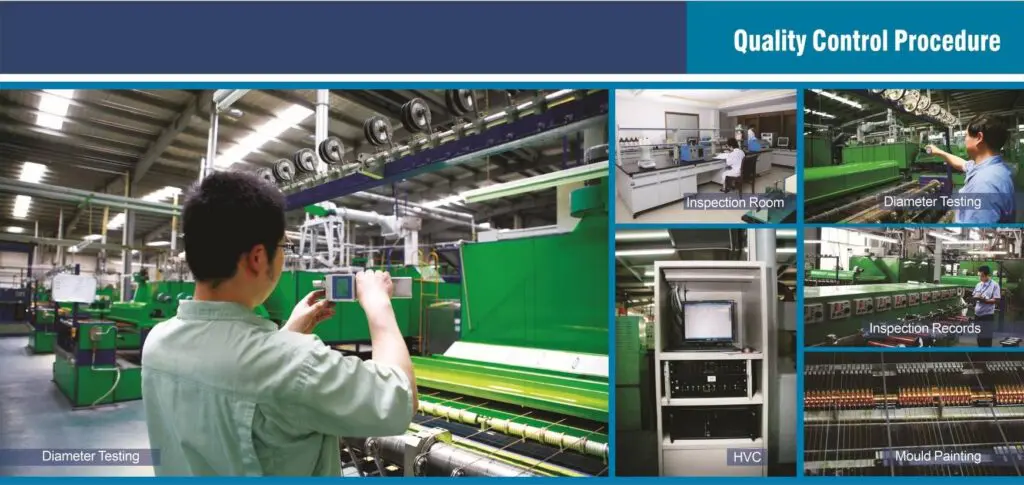

Testing and Quality Control
In the final production stage, copper winding wires undergo rigorous testing and quality control to ensure they meet industry standards and customer requirements. Key tests include:
- Insulation Thickness Testing: Ensures the uniformity and compliance of the coating, preventing short circuits caused by insufficient insulation.
- Resistance Testing: Evaluates the wire’s conductivity to guarantee efficient energy transmission.
- Mechanical Strength Testing: Assesses the wire’s tensile strength and flexibility to ensure it remains durable and resistant to breakage during winding and operation.
These comprehensive quality checks ensure that the copper winding wire delivers optimal performance and reliability in its intended applications.
Summary
OUWEI’s copper winding wires, known for their exceptional electrical conductivity, outstanding durability, and excellent thermal stability, have become essential components in modern electrical systems. Backed by a professional team with deep expertise in the properties, types, and manufacturing processes of copper winding wires, OUWEI provides tailored support to manufacturers and engineers. This ensures that they can select the most suitable solutions for their specific needs, delivering more efficient and reliable electrical performance across a wide range of applications.
