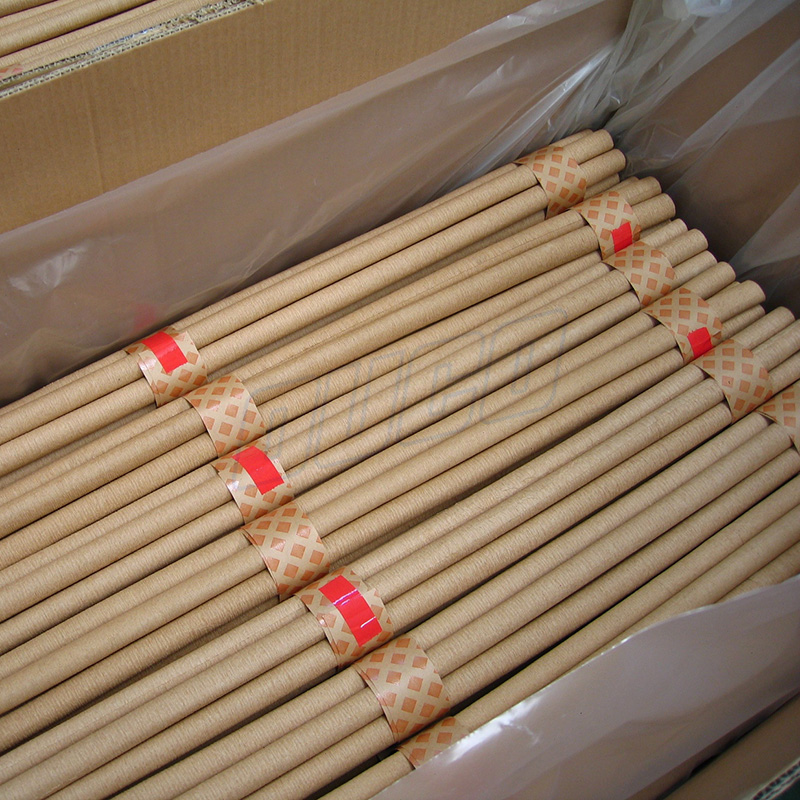

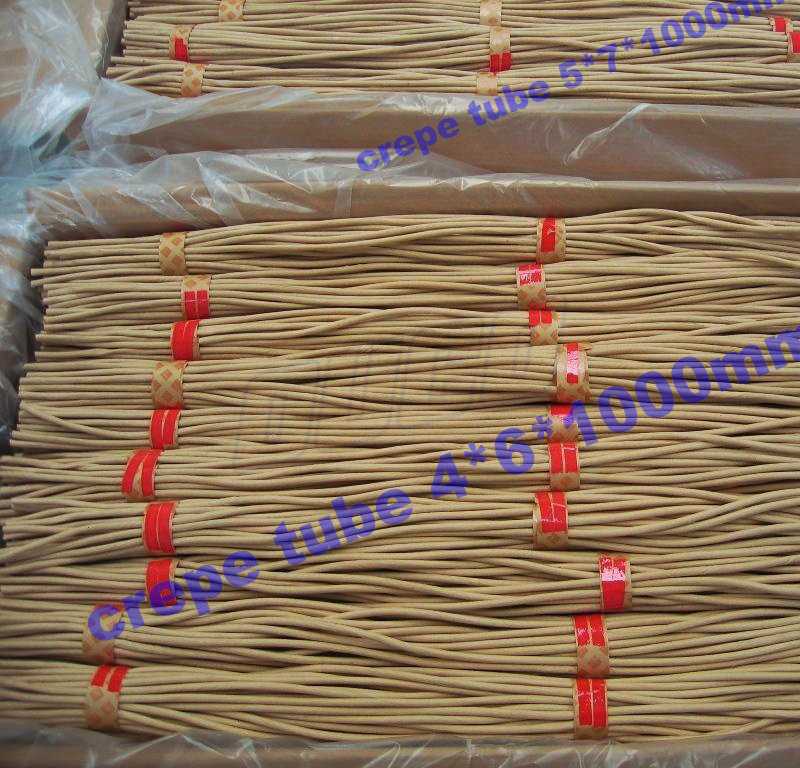

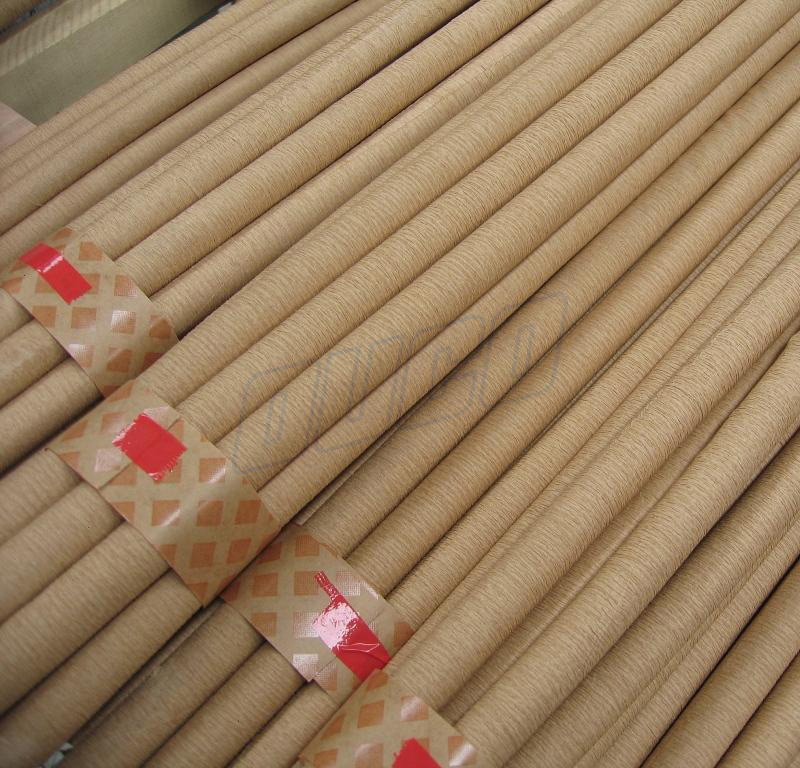

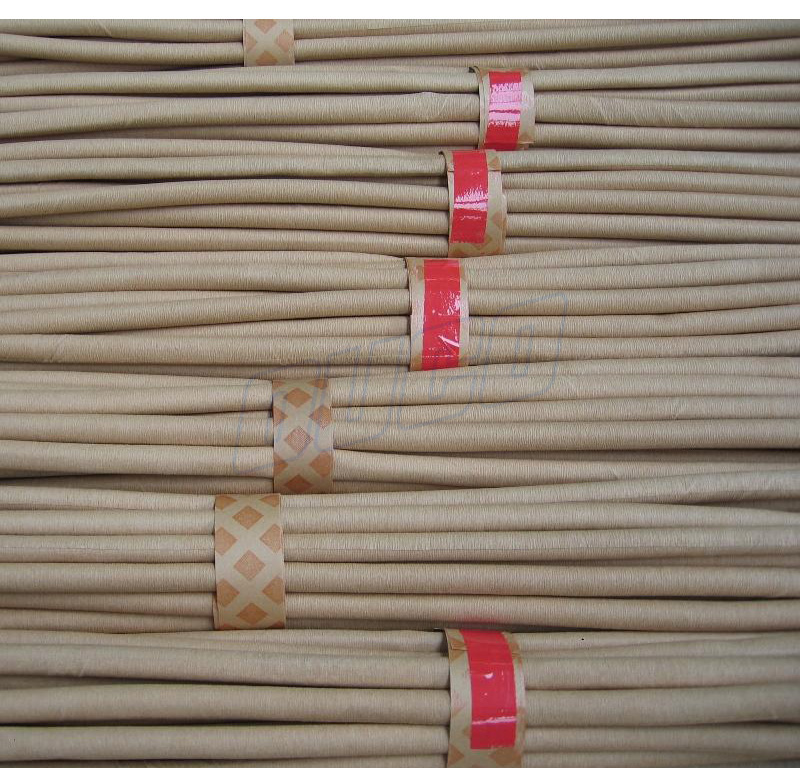

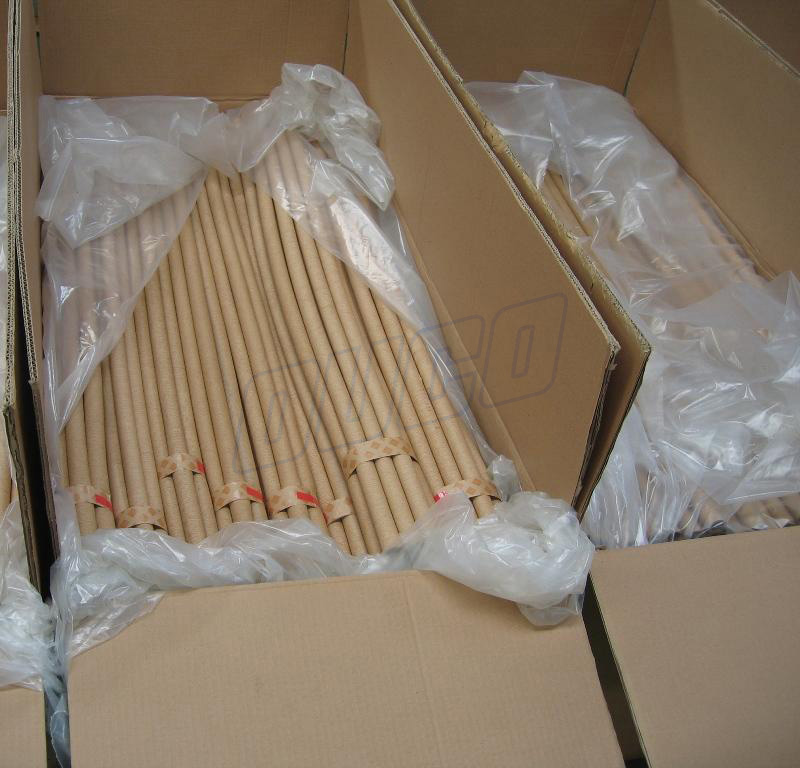

Insulation Crepe Paper Tube
Sizes and Tolerances
| ⚫ Diameter: | Length Lonely 1000mm 4-5-6-…..40mm |
| ⚫Wall thickness: | 1-1.5-2-3-4mm |
| ⚫ Length: | 1000 and 1200mm |
| ⚫Tolerances(mm) | I.D=+0.5mm, O.D=+1mm, Length= +15mm -20mm Further dimensions on request. |
Brief Introduction of Acrylic Coated Fiberglass Sleeve：
Made of Electrical Grade Insulation Crepe Kraft Paper. Direction of
creping is transverse . Only the edge of outer layer is glued .
These tubes have extremely good compatibility with liquid dielectrics.
Class “A”insulation (105°C). The Tube retains maximum oil due to use
of Crepe Paper.These tubes can bend under extreme conditions without
collapsing.
Applications:
Crepe paper tubes for electrical insulation paper by electrical wrinkles by
special processing, mainly for oil-immersed transformer wire insulation
coating materiaI.
Reliable soft, any bending prone to breaking. Mainly used for oilimmersed transformer naked wire insulation package.
