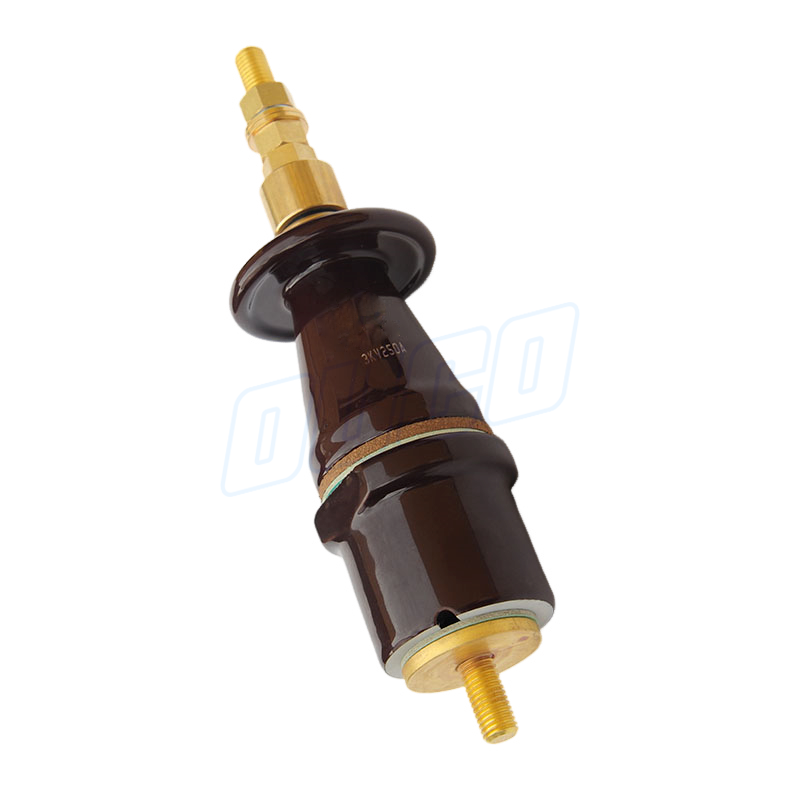

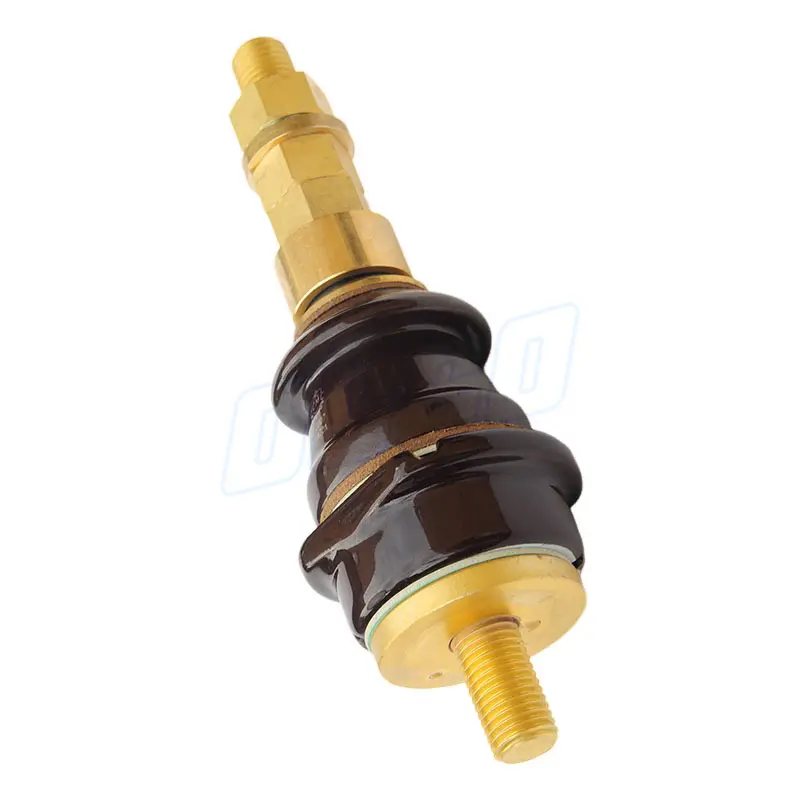

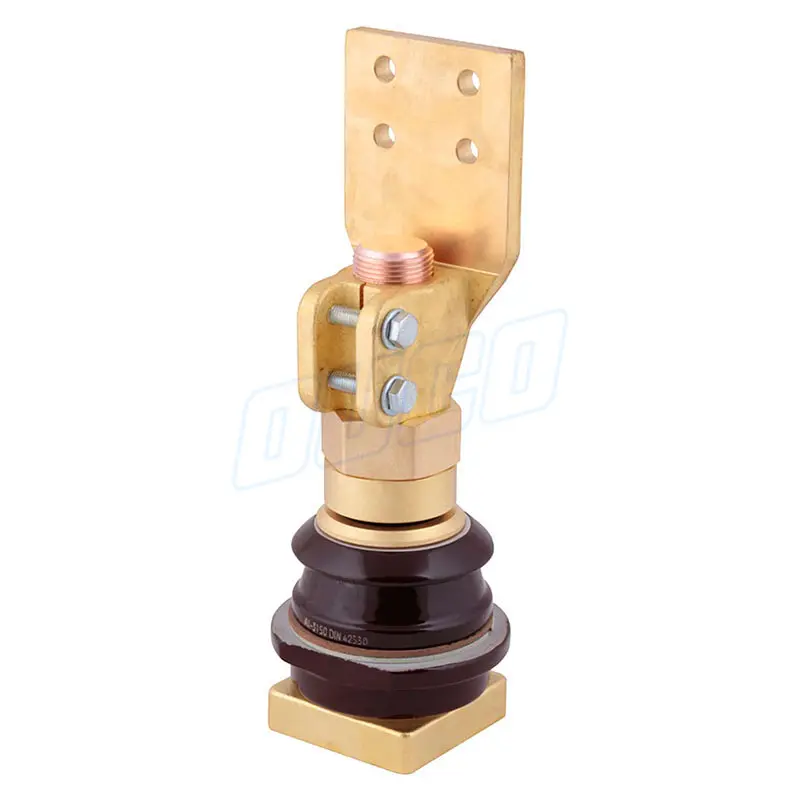

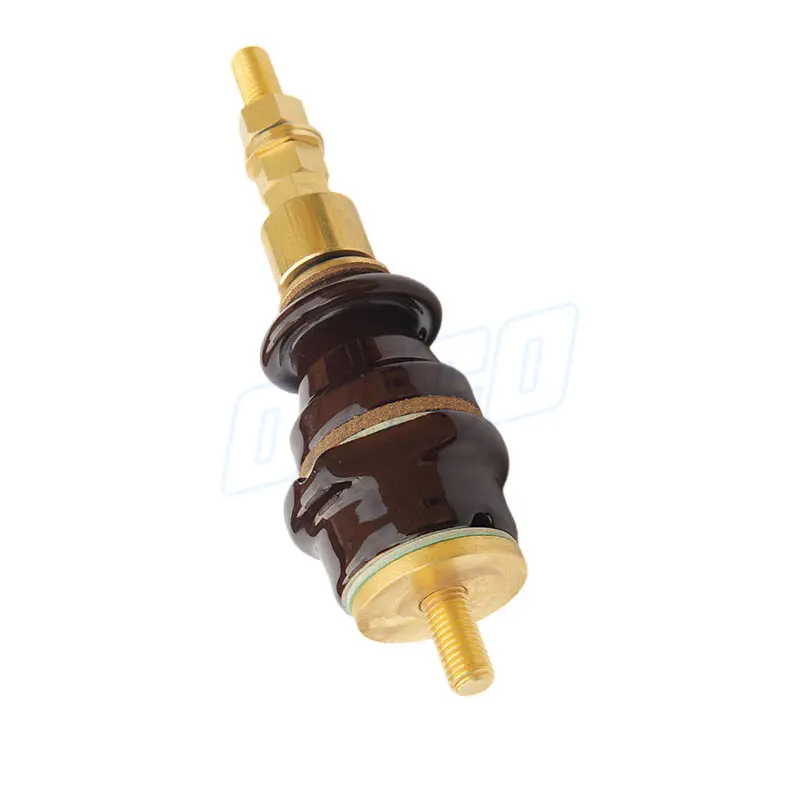

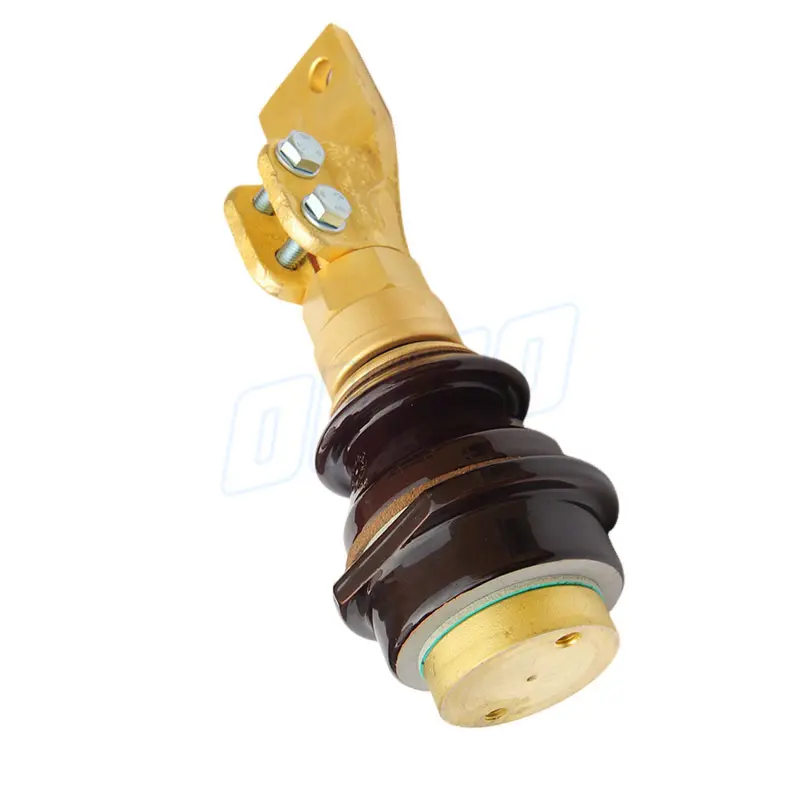

DIN Standard LV Bushing

Description:

Description
Transformer bushing insulators are applied as a structure, carrying on conductor through a partition such as transformer tank and insulating it, incorporating the means of attached flange to the partition for medium voltage level.For Entire Range of Bushings Ratings from – 1 Kv to 72 Kv & – 100 Amp. to 10,000 Amp.All Ares Insulator transformer bushing insulators are made of ceramic materials according to IEC 672. Other Transformer bushing custom-made insulators can be supplied upon customer’s request and specifications.

Operation:

Specifications:
Bushings are manufactured to DIN 42530, 42539, 42531, 42532, 42533, 42534 Tank wall thickness minimum 3mm , maximum 6mm Tank hole size tolerance is -0mm +1mm
