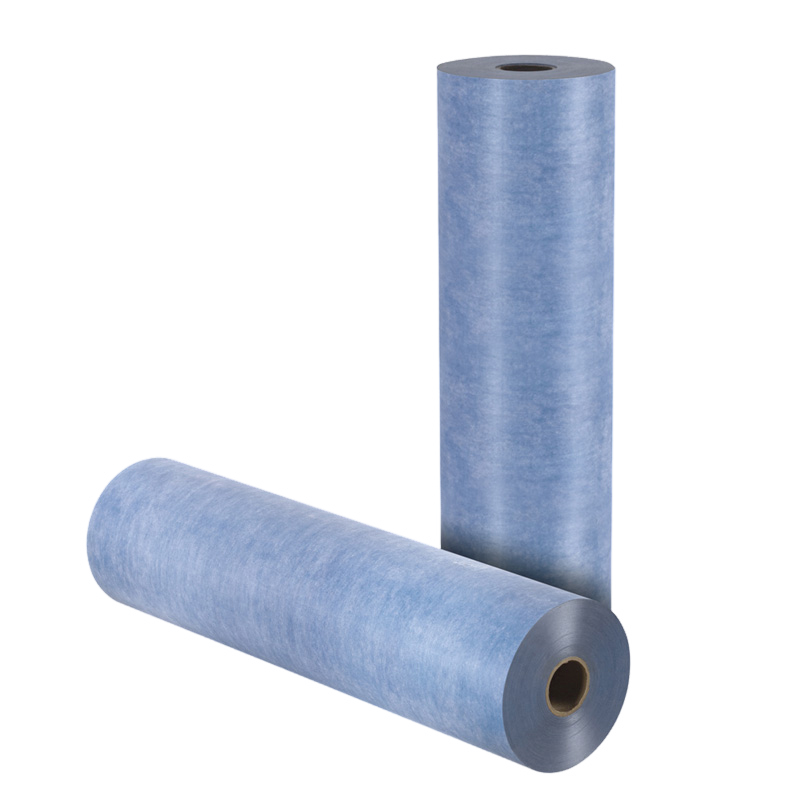

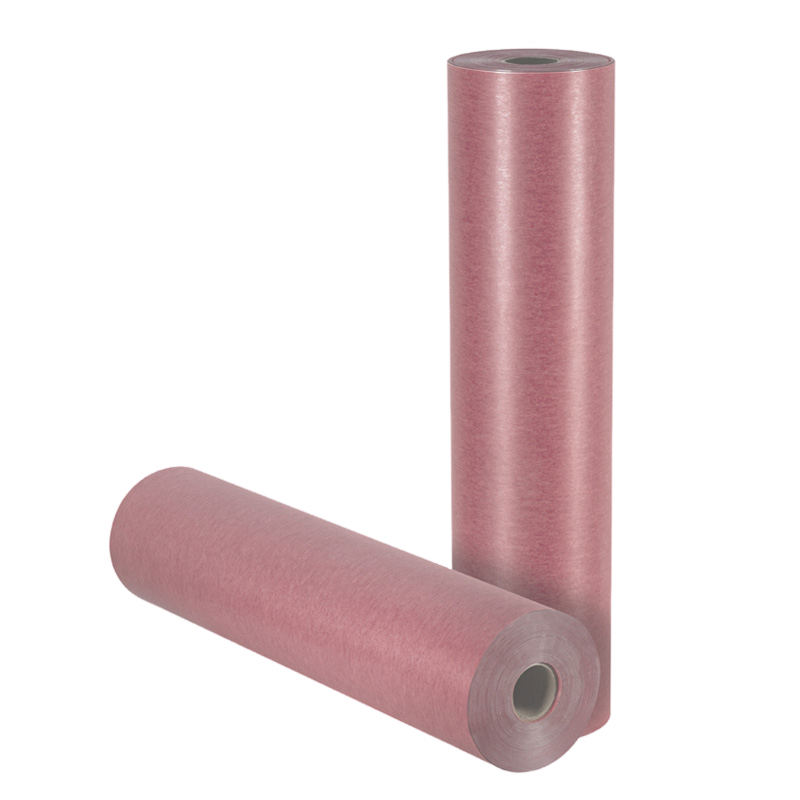

DMD Insulation Paper
Main Parameters
| ⚫ Insulation class: | B/F class (130°C/155 °C) |
| ⚫Color: | Blue, green, white and pink |
| ⚫ Width: | 10-1000mm |
| ⚫Thickness: | 0.15-0.35mm |
Brief introduction of the DMD insulation paper:

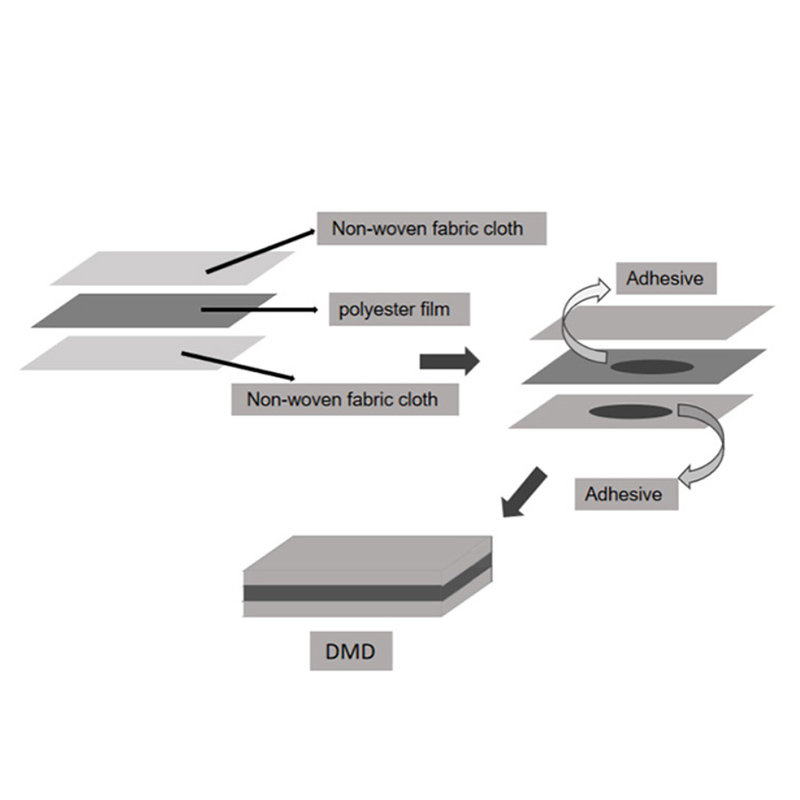

DMD flexible laminates is a three-layer flexible composite material. It is made by bonding both sides of non-woven polyester fabric with polyester films with F-grade or B-grade adhesive.
About the Oukepu Polyester Film: It is made from Polyethylene terephthalate by casting & Biaxially oriented. It is widely used for the end wrap insulation, liner insulation of electrical oils, electromagnetic wire wrap insulation, cable wrapping on motor, transformer or other electrical appliances.
Used for electrical insulation, DMD Composite Paper is economical and versatile. This three-layer constructions ensures the material offers good mechanical and dielectric strength while still being able to be impregnated by insulating varnishes.
Applications:
It is used for motors, generators and electric appliances in the slot insulation, liner insulation and turn to turn insulation.
DMD is typically used on low and medium voltage electric machines. Specific applications include:
—Slot liner for electric motors.
—Phase insulation.
—Interlayer insulation material for transformers
