Epoxy Prepreg DMD
Main Parameters
| ⚫ Insulation class: | F class (155 °C) |
| ⚫Color: | red |
| ⚫ Width: | 1000mm |
| ⚫Thickness: | 0.16mm,0.18mm,0.20mm,0.23mm,0.25mm |
Brief Introduction of Epoxy Prepreg DMD

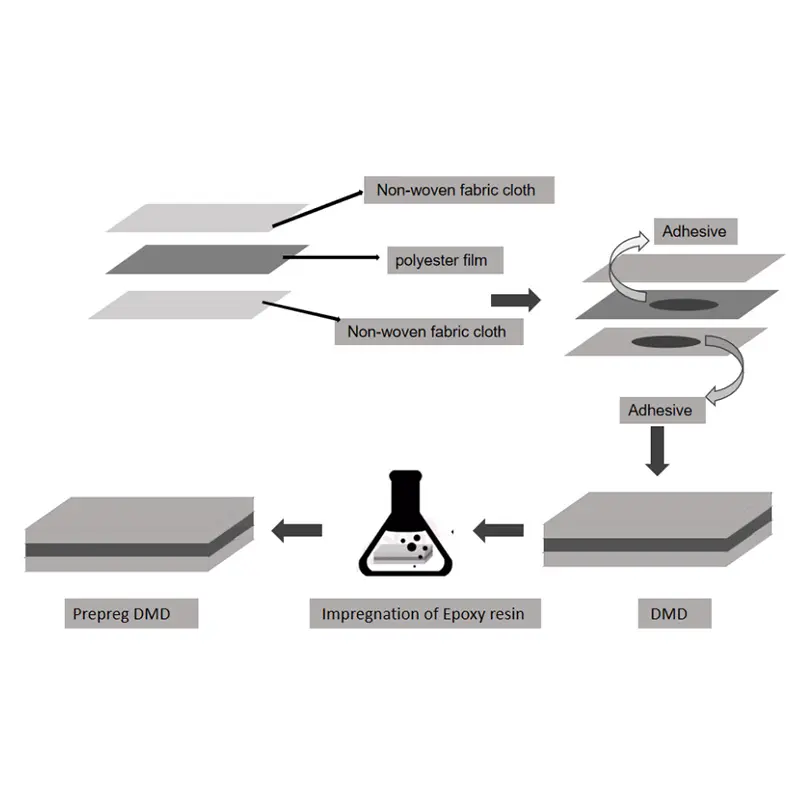

Epoxy prepreg DMD is made of F— grade DMD impregnated modified epoxy resin by baking and rewinding. Epoxy resin can be cured quickly, with low molecular volatiles and low shrinkage.
It has long shelf life at room temperature,low precuring temperature and time,showing excellent electrical insulation, bonding and heat-resistant properties.
Applications:
Class F electrical insulation epoxy prepreg DMD is suitable for layer insulation of copper foil or aluminum foil on low-tension coils of dry-type transformers as well as suitable for slot and turn-to-turn insulation of B-class and F-class motors and electrical appliances.
