Fiberglass Epoxy Wedges Dogbone
Product Description
| ⚫ Temperature Class: | F & H. |

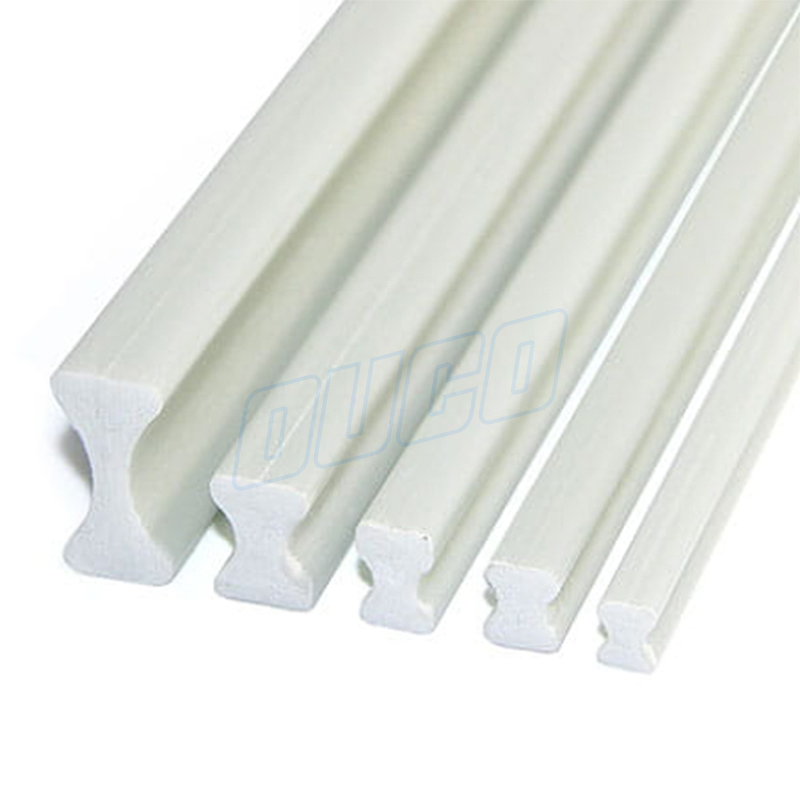

Fiberglass Epoxy Wedges Dogbone
FIBERGLASS WEDGES Dogbone pultrusions are made from fibreglass-reinforced thermoset polyester. The continuous-filament fibreglass roving of each solid dogbone provides excellent strength.
Dimension:
5*5, 6*6, 7*6, 6*8, 8*6, 8*8, 9*8 ,10*5, 10*6, 10*7, 10*8, 10*9, 10*10,10*12
11*10,12*8,12*10,12*12,13*10,14*10,14*12,15*10,15*15,16*16,16*14,16*10,17*10,17*12,
18*12,18*13,18*14,18*16,18*18,19*10,20*10,20*14,20*18,25*16.
Application:

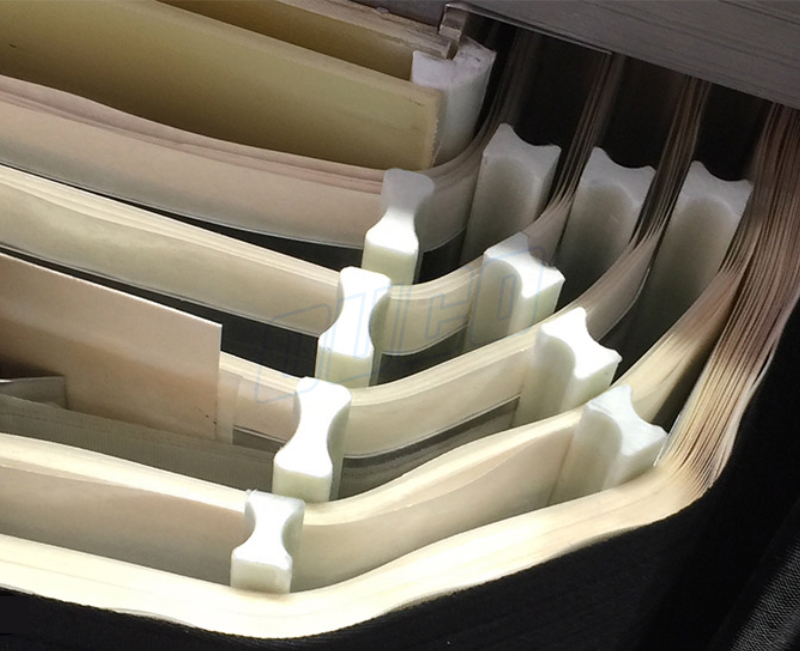

FRP Dog Bone is a type of pultruded profile made of fiber glass yarn (FRP/GRP) and resin for electromechanical applications. It is used as a dovetail spacer in coil winding assembly in dry type transformers, switchgear, on load tap changer insulation, motor slot wedges, and other electrical equipment. FRP Dog Bone has the advantages of high mechanical strength, small partial discharge, small dielectric loss, high temperature resistance, aging resistance, and easy processing. It can improve the efficiency and reliability of electric motors and reduce the maintenance cost.
