Fish Paper
Main Parameters
| ⚫ Insulation class: | E class (120 °C) |
| ⚫Color: | Cyan, Brown, Blue |
| ⚫ Width: | 10-1300mm |
| ⚫Thickness: | 0.10-0.60mm |

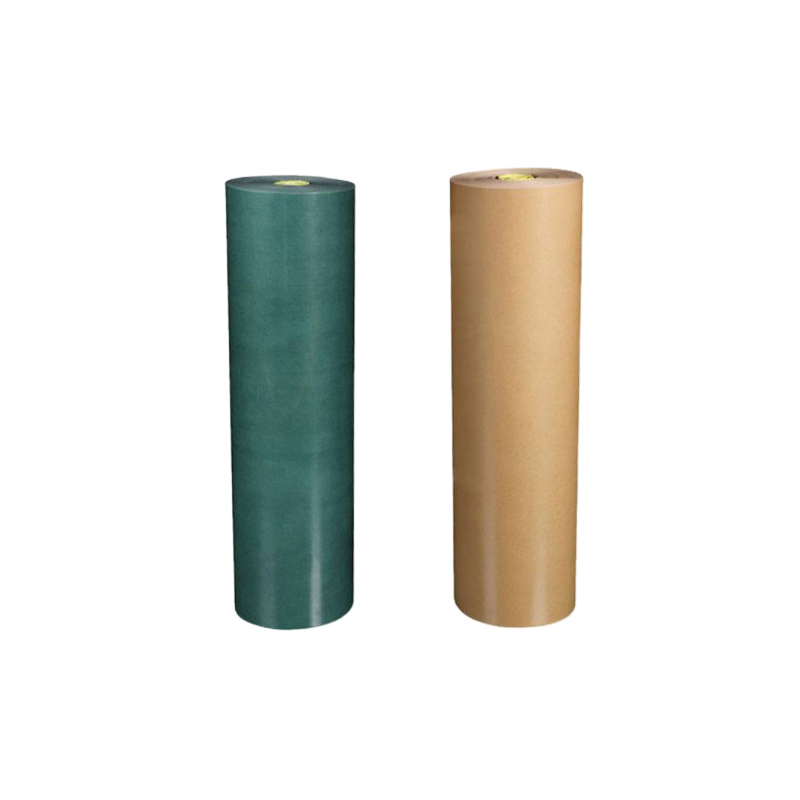

| ⚫Form: | roll, sheet, strip |
Description of Fish Paper

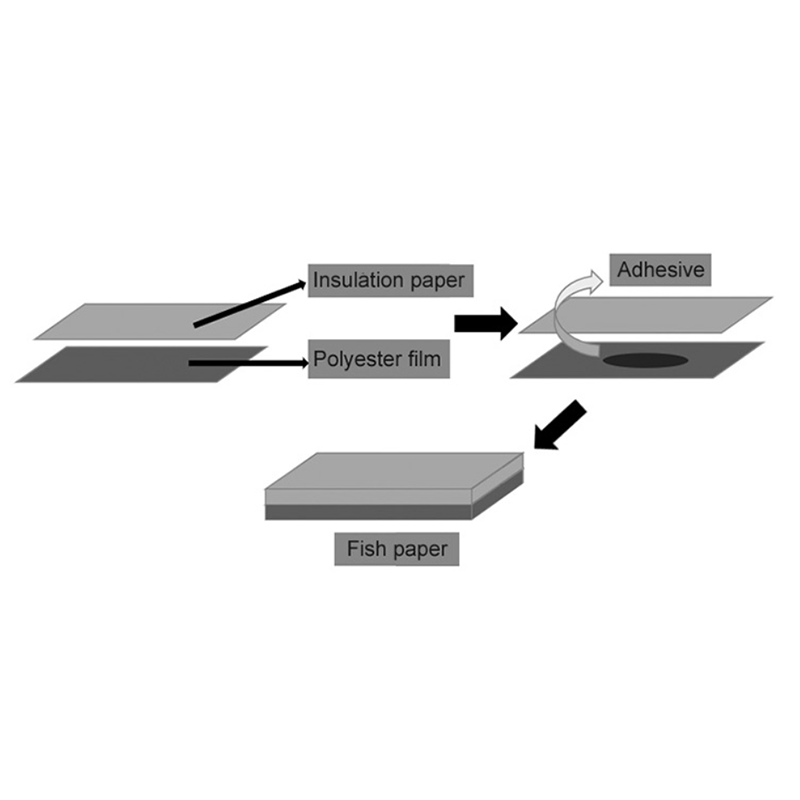

Fish paper is a two-layer flexible composite material, produced by B Class adhesive to adhere insulation paper with polyester film together
–Two layers: polyester film is bonded with insulating paper.
–Base Layer: 100% Sulfate wood pulp presspaper
–Outer Layer: Polyester film(PET) for Electrical Purposes
Advantages of the Fish Paper:
—Outstanding dielectric properties
—Fish paper electrical insulation has good mechanical strength because it’s fibrous
—Retains greater flexibility than plastics at low temperatures
Applications:
Electrical insulation class E fish paper is used as slot, phase, turn-to-turn and liner insulation in Class E/B motor and electrical appliances.
