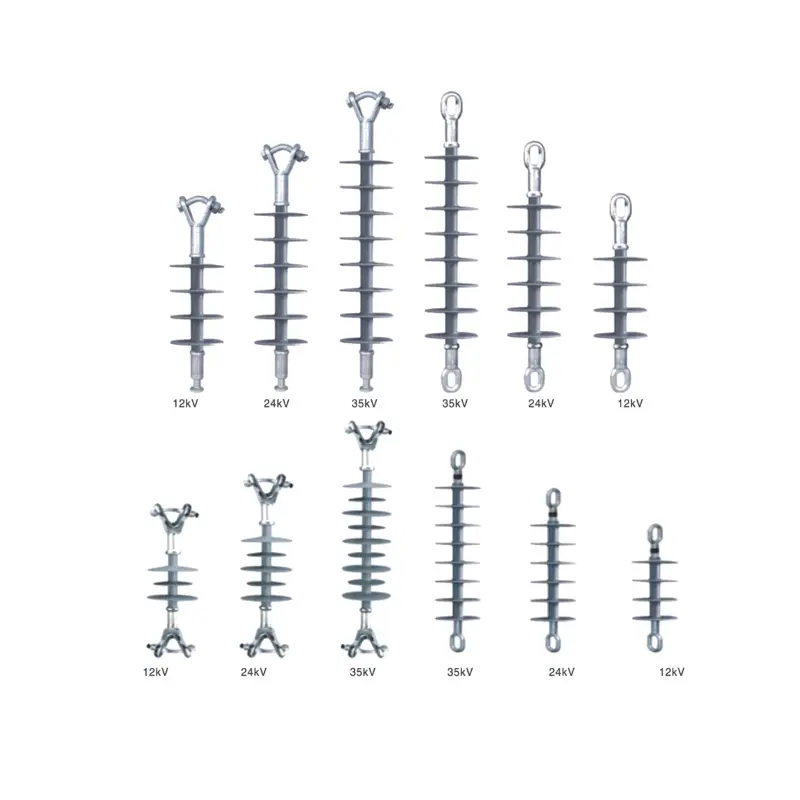

FXB Suspension Insulator
Description:
This product is special for Badly Polluted areas,high mechanical tension load,long span and compact power line.And have features of light weight,samll volume,unbreakable,anti-bend,high strength for anti-twist and strong explosion protection.
Technical Specifications
Rated Voltage (kV): 12-15/24-28/33-38
Rated Mechanical Stretch Load (kN):70/100
Structure Height (mm):380/415/475/496/563/586
Minium Acrying Distance (mm):169/216mm/353mm
Minimum nominal Creepage Distance (mm):440/690/900
Lightning Impulse Withstand Voltage (Peak)≥ (KV):95/185/230
Power frequency withstand voltage (wet) ≥ (KV) (mm):45/95/105
