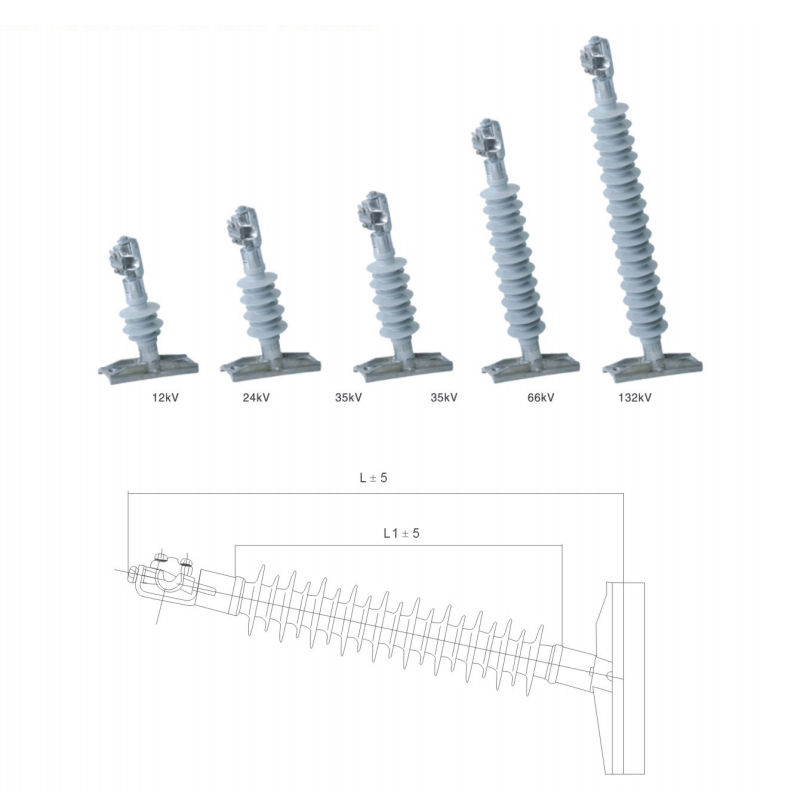

FZSW Line Post Insulator
Description:
This product is applied to high voltage power line service.And have features of good gydrophobicily,anti-ageing,antileakage trace and electric erode proof,tensile strength and bending strength strong mechanical strength,withgood perfor-mance in shock resistance good quakeproof & brittle-breakproof,light weight,easy to installation,and the installation outline of top and base are the same size with porcelain type.They can exchange to use each other.
Technical Specifications
Rated Voltage (kV): 10-140
Rated Mechanical Stretch Load (kN):12.5-12
Structure Height (mm):380-1450
Minium Acrying Distance (mm):148-1210
Minimum nominal Creepage Distance (mm):355-3210
Lightning Impulse Withstand Voltage (Peak)≥ (KV):75-760
Power frequency withstand voltage (wet) ≥ (KV) (mm):42-430
