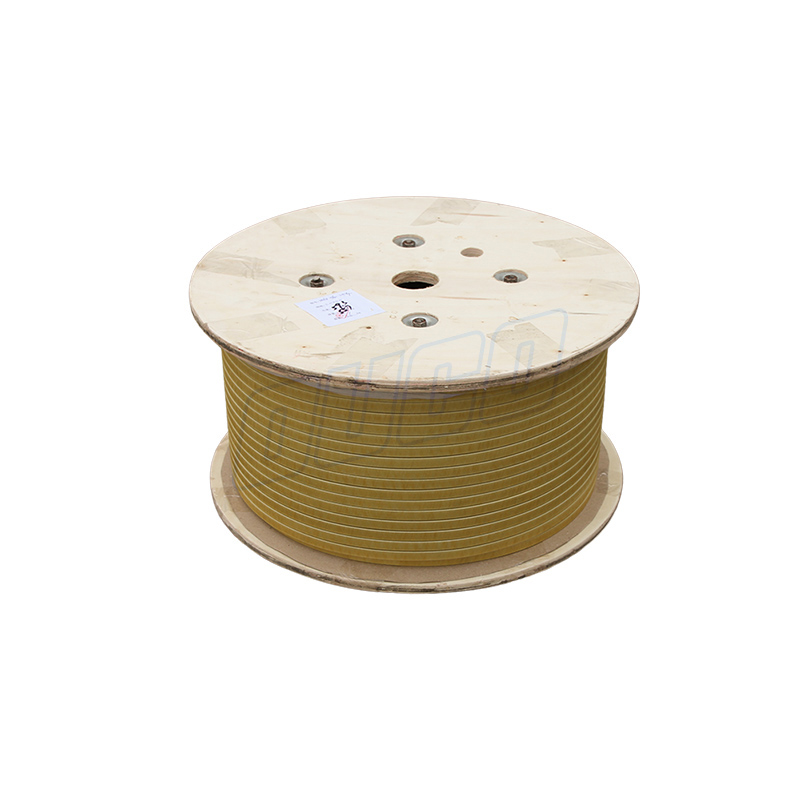

Glassfibre Wrapping Aluminum Wire
Characteristics
| ⚫ Product name: | GLFIBRE 180 2AL |
| GLFIBRE 180 3AL | |
| ⚫ Class: | 180 |
| ⚫ Temperature index: | 180℃ |
| ⚫ Heat shock: | ≥ 200℃ |
| ⚫ Conductor material: | EN 1715 – EN AW1370 [Al99.7] |
The Glassfibre Wrapping Aluminum Wire is insulated with 1 to 3 layers of high-strength glass-fibre yarn and impregnated with polyesterimide resin, providing outstanding mechanical stress resistance. Engineered for lightweight electrical designs, it is particularly suited for demanding applications such as generators, large motors, magnet coils, and welding equipment. Supplied in standard PT520 packaging.
Insulation:
- 1-3 layers of glass-fibre yarn
- Impregnation: polyesterimide
Properties:
- Excellent resistance to mechanicalstress
- Suitable for lightweight designs
Field of application:
- Generators
- Large motors
- Magnet coils
- Welding equipment
Standard packaging:
- PT520
