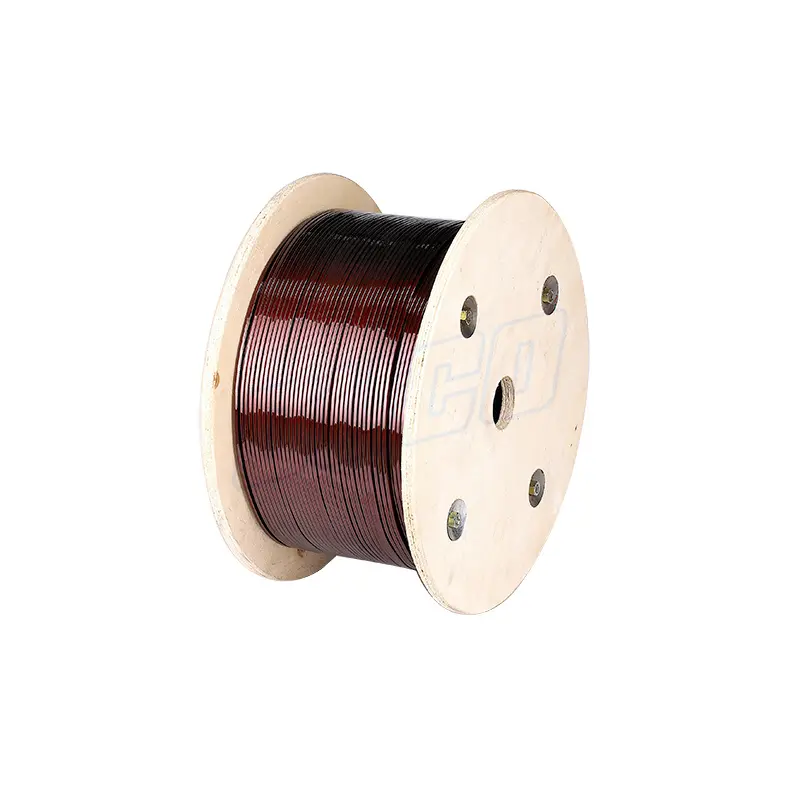

Rectangular Enamelled Copper Wire
Characteristics
| ⚫ Product name: | CTL200 – Gr 2 |
| ⚫ Standard: | IEC 60317-29 |
| ⚫Class:200 | Temperature index:≥ 200℃,Heat shock:≥ 220℃ |
Insulation:
Basecoat: THEIC-modified polyester or polyesterimide
Overcoat: polyamide-imide
Properties:
High heat resistance
Suitable in lightweight designs
Very good resistance to transformer oils
Very good resistance to typical solvent
Freon resistant
Excellent resistance to mechanical stress
Field of application:
Electric motors/Rotor coils/Transformers/Chokes
Dimension range:
ECTL 200- Gr 2 : 1 – 100
Standard packaging:
PT520
