417A-1200A Triclamp LV Bushing
Description
| ⚫ Voltage class: | 1.2 kV, BIL30KV |
| ⚫ Rated current: | 417A/625A/1200A |
| ⚫ Application temperature: | -40~140°C Indoor condition without salt fog and chemical corrosion; |
| ⚫ Conductor material: | Copper C11000 |
| ⚫ Color of insulation body: | black |
| ⚫ Recommended dia. of tank hole: | 45.0+0.5 mm |
The 417A-1200A Triclamp Low Voltage Bushing is designed for pad-mounted transformers, switchgear, and other transformer-filled apparatus. It features high durability and superior performance in various electrical applications.

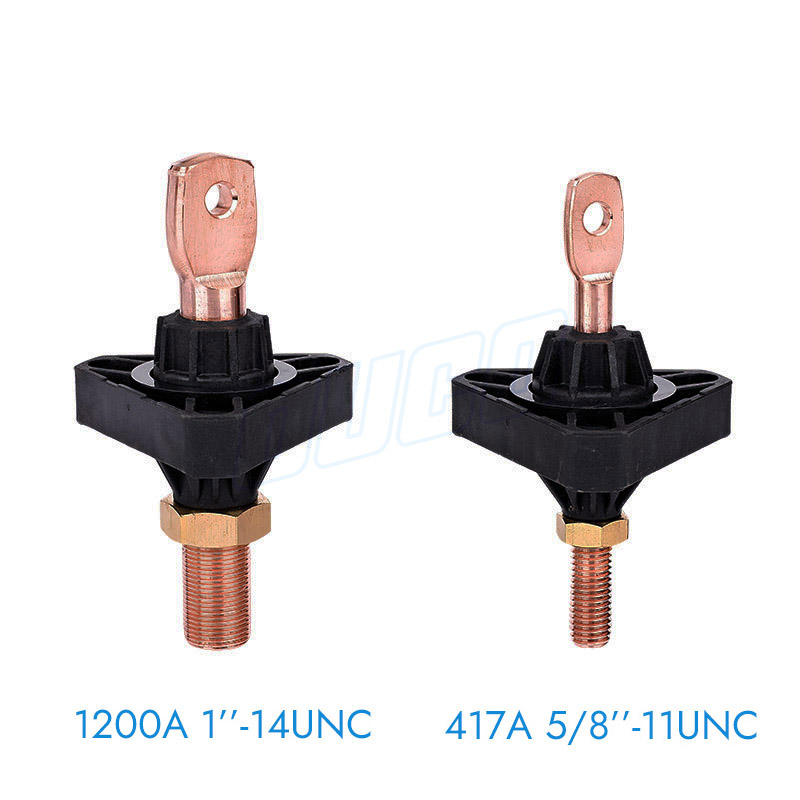

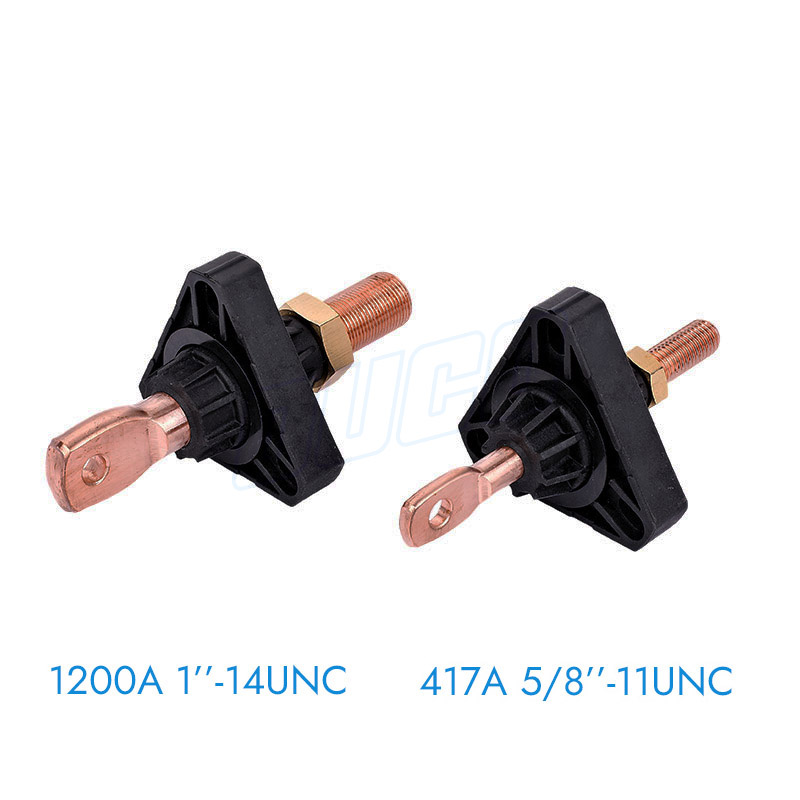

This Triclamp-style integral low-voltage bushing comes with threaded copper studs (5/8″, 3/4″, or 1″) that are integrally bonded to the insulation for secure and efficient performance. Custom threaded stud lengths are available to suit your specific application needs. All dimensions are in millimetres unless specified otherwise.
Shop 417A-1200A Triclamp Low Voltage Bushings with 1.2 kV voltage class and 30 kV BIL rating. Suitable for pad-mounted transformers and switchgear. Available in various current ratings (417A, 625A, 1200A) and copper conductor material for reliable performance. Custom dimensions available upon request.
