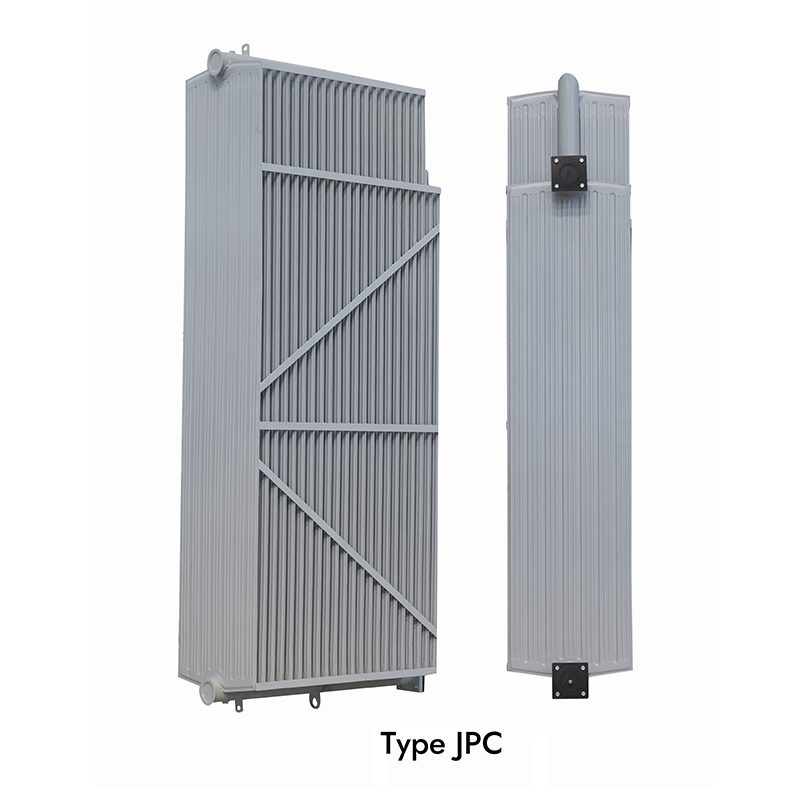

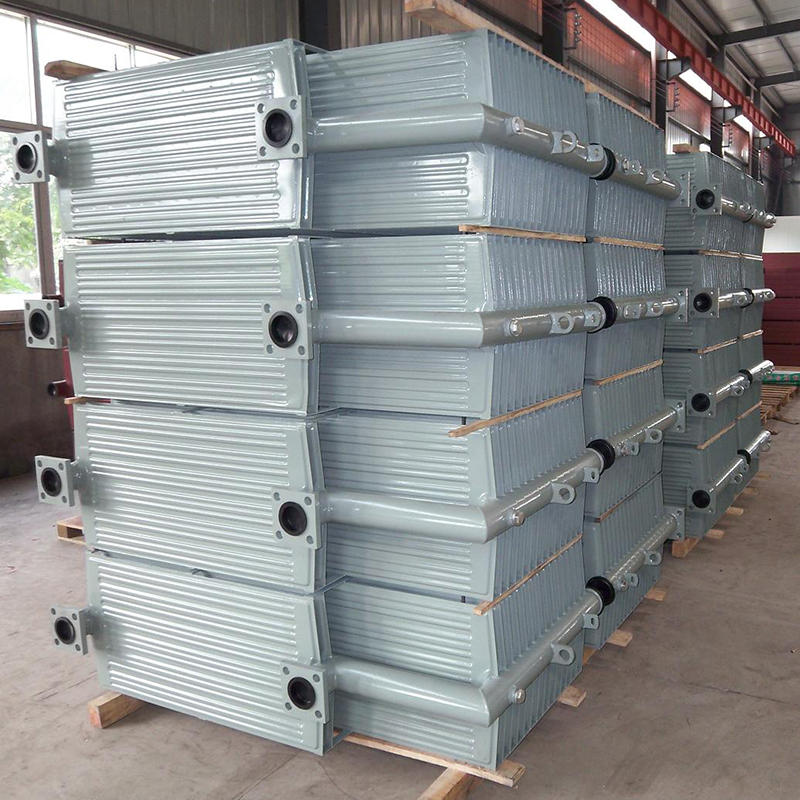

Type JPC Radiator (Gooseneck type)
Description
| ⚫ Application: | Oil-immersed Transformer |
| ⚫ Radiator type: | PC – type, PG – type |
| ⚫ Radiator piece width: | 310mm, 480mm, 520mm, 535mm |
| ⚫ Fin distance: | 40mm; 45mm; 50mm |
| ⚫ Surface treatment: | Primer, Normal paint, hot Zinc-galvanized, spray |
| ⚫ Radiator Center distance: | 500 – 3600mm |
| ⚫ Radiator pieces number: | 3 – 35 |
| ⚫ Radiator raw material : | SPCC |
The radiator structure forms:
(1)The radiator according to the installation divided into:PG stationary and PC detachable.
PG type:stationary,don’t use the flange,direct welding on transformer tank.
PC type:detachable,through the flange fixed to the transformer tank.
(2)The radiator according to the structure can be divided into:
Conventional type:the center is the same,for example PC3200-30/520
Gooseneck type:for example PC2600(2200)-33(2)/520 the center of the film is different,the film is divided into long films and shor films,and the short film are more than two pieces.
