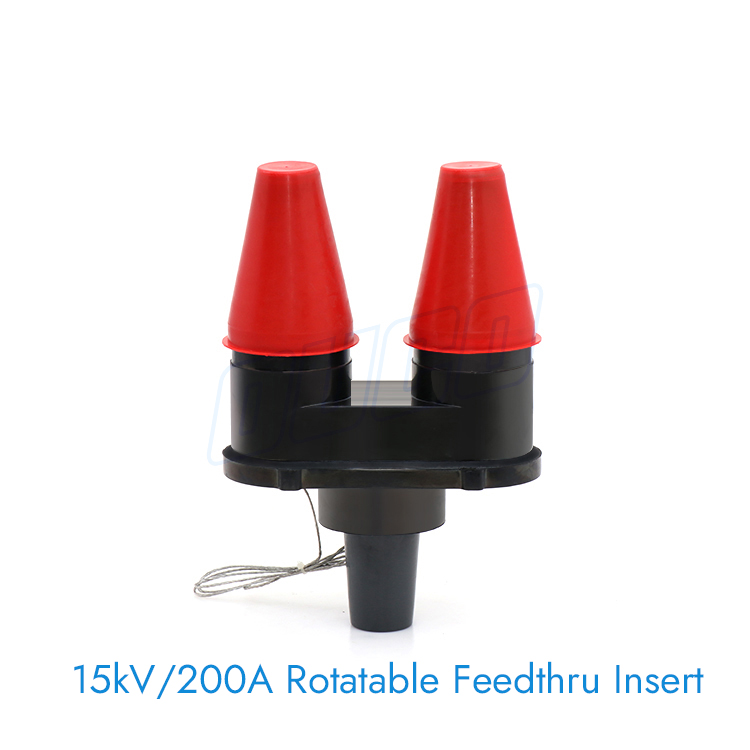

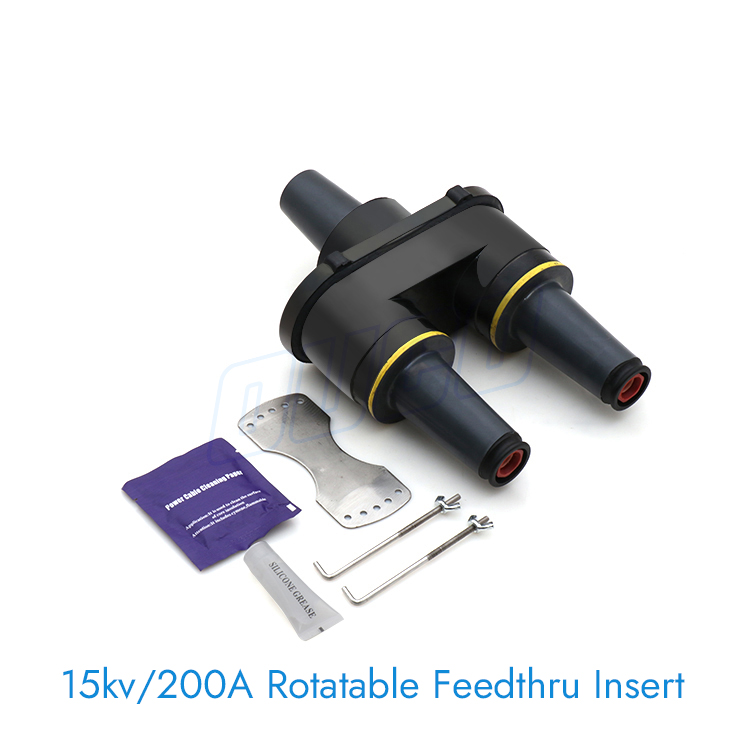

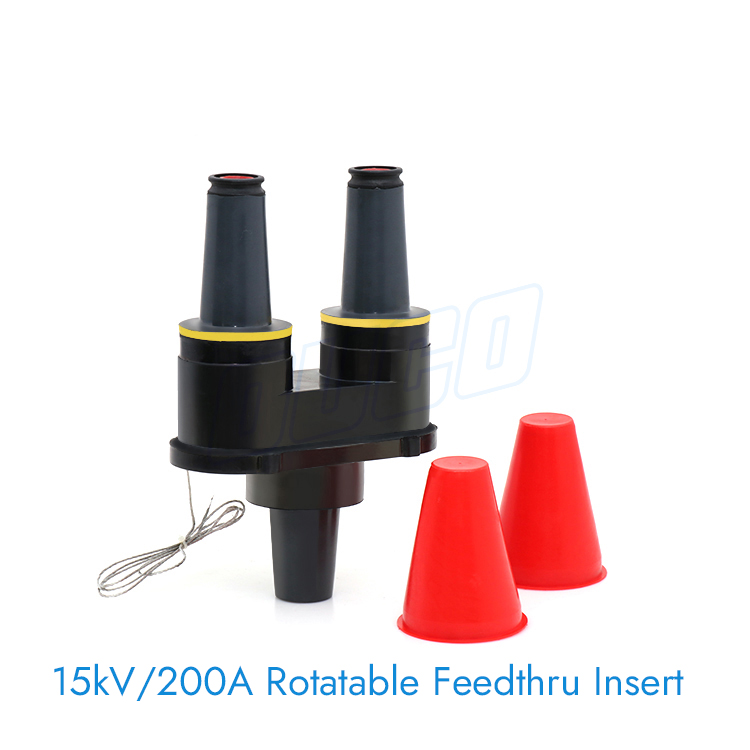

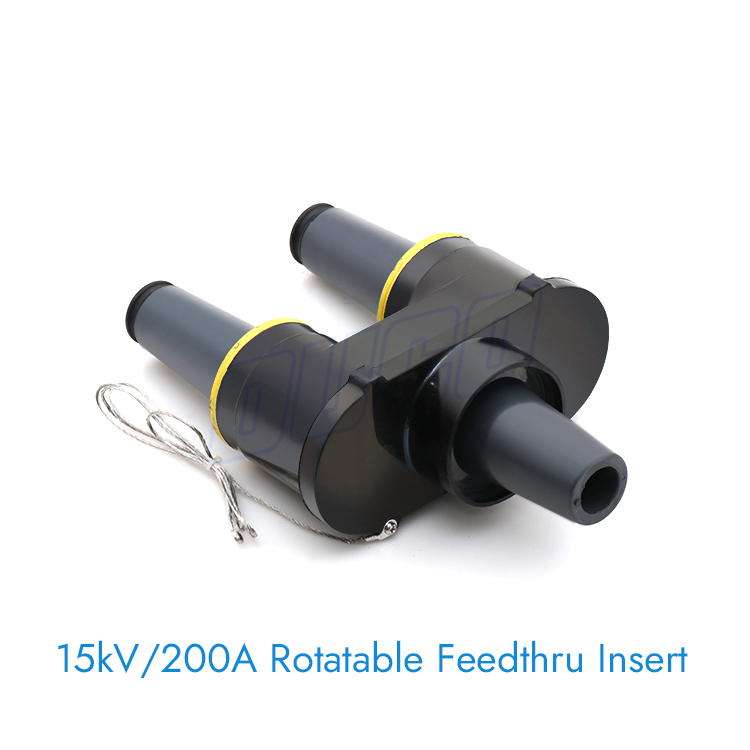

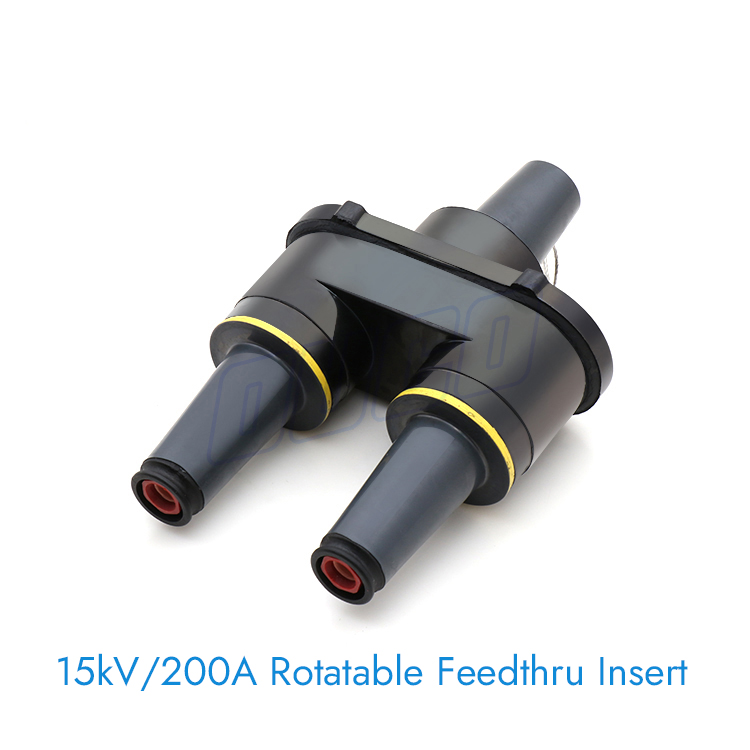

15KV 200A Rotatable Feedthru Insert
Description
| ⚫ Voltage class: | 15KV |
| ⚫Max.Rating Phase to Phase: | 14.4 kV |
| ⚫Max.Rating Phase to Ground | 8.3kV |
| ⚫ AC 1 Minute Withstand: | 34 kV |
| ⚫DC 15 Minute Withstand: | 53 kV, ≤10 pC |
| ⚫ BIL and Full Wave Crest: | 95 kV |
| ⚫ Minimum Corona Votage Level: | 11kV |
| ⚫ Continuous: | 200 amps rms |
| ⚫Swtiching: | 10 Operations at 200amps rms at 14.4kV |
Application
The Oukepu 15KV 200A Rotatable Feedthru Insert threads onto a standard 200A bushing well and provides dual loadbreak bushing interfaces. It can convert radialfeed transformers to feedthru transformers and add in-line arrester protection if needed. The torque limit ratchet feature prevents the bushing well stud from breaking during installation. The ratchet feature allows users to rotate the feedthru insert for 360°to orient the feedthru insert in the desired position.
The Oukepu 15KV 200A Rotatable Feedthru Insert meets all the requirements of IEEE Standard 386, and is fully interchangeable with competitor’s products and mating products that also meet IEEE Standard 386. When installed with mating components, the bushing insert provides a fully shielded and fully submersible connection for loadbreak applications.
