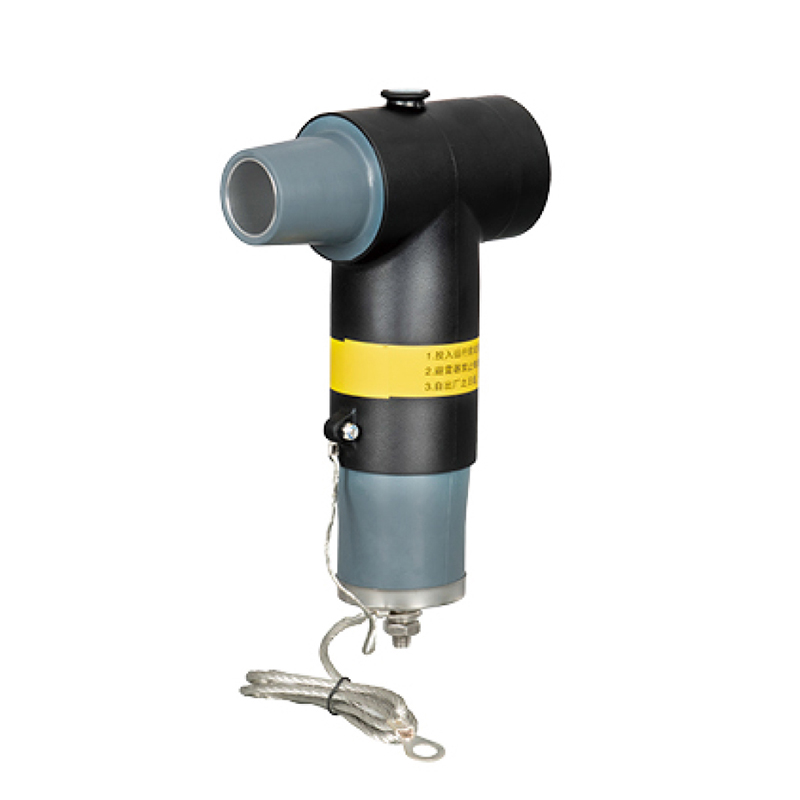

17 kV / 50 kV Coupling T Surge Arrester
Specifications
| ⚫Maximum Voltage Class (Um) | 17 kV |
| ⚫Nominal Discharge Current of Arrester | 5 kV |
| ⚫ Residual Voltage of Nominal Discharge Current | ≤ 50 kV |
| ⚫Maximum Continuous Operating Voltage | 13.6 kV |
| ⚫Voltage of DC 1mA Current | ≥ 25 kV |
KEY FEATURES
⚫Provides fully shielded deadfront arrester protection.
⚫Metal (zinc) Oxide Varistor (MOV) gapless design.
⚫EPDM insulation rubber molded around MOV module.
⚫Mounting can be vertical, horizontal, or any angle in between.
⚫No minimum phase clearance requirements.
⚫100% electrical tested at factory
Application
The Ouwei T-Body Surge Arrester is an arrester combined within a coupling(rear) T-Body interface. It is designed to protect apparatus, including transformers, switchgear, and other equipment from high voltage surges due to lightning or switching.
