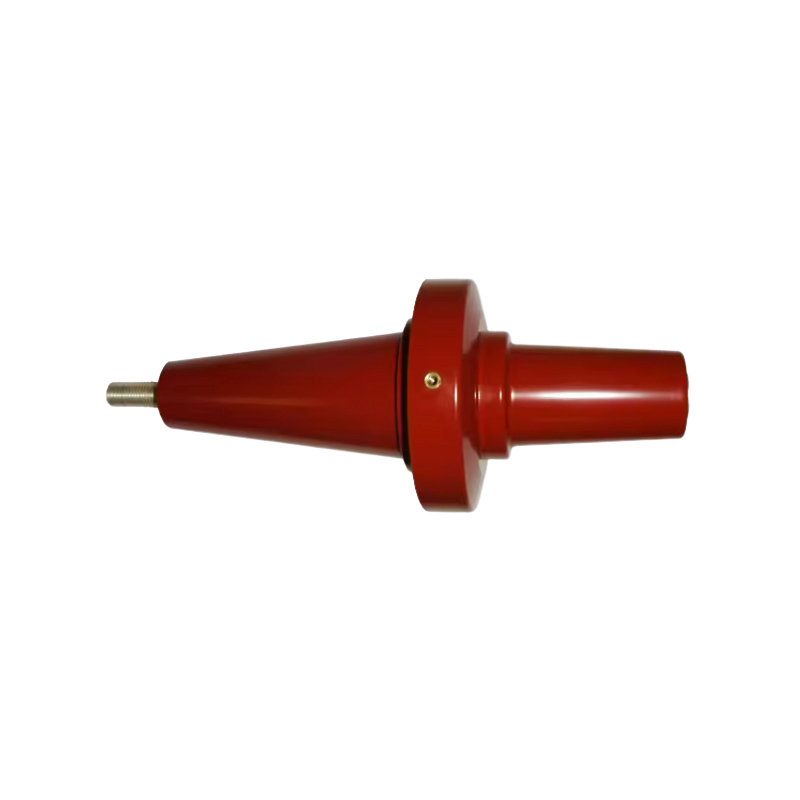

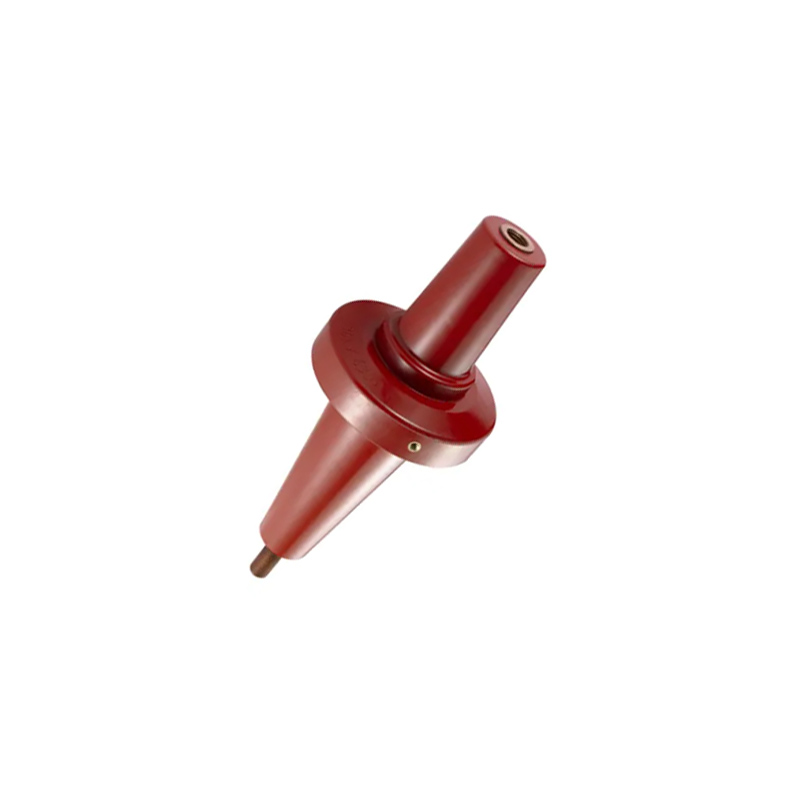

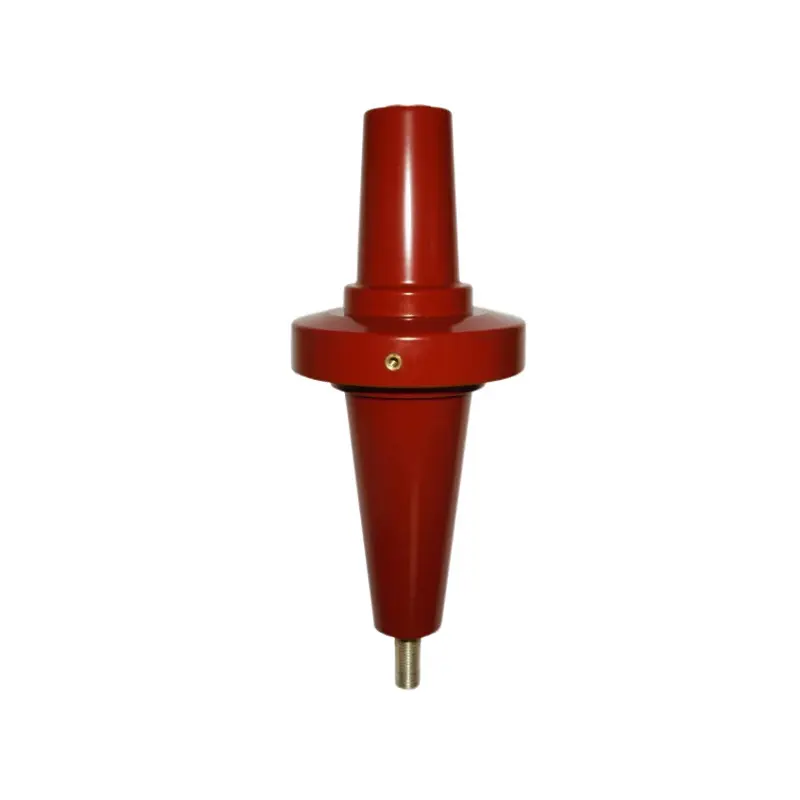

36kV 630A Bolted Type Bushing （European Style）
Electrical Ratings
| ⚫Maximum system voltage (Um): | 24kV/36kV |
| ⚫Impulse: | 125kV/170kV |
| ⚫AC withstand (1Min): | 54kV/81kV |
| ⚫Continuous current: | 630A |
Application
For oil-insulated (R-temp, hydrocarbon, or silicon), apparatus, including switchgear, transformer, and capacitors. System voltage (Um) of 24kV and 36kV.
For indoor and outdoor installations.
Mounting in vertical or horizontal position.
Standards
Meets the interface requirements of CENELEC HD506 S1, ANSI/IEEE386, DIN 47636
Has been tested with mating parts to IEC 60502-4 and CENELEC HD629.1 S1
Quality Assurance
Our manufacturing facility is registered to ISO 9001-2000 by third party audit.
Required production test.100% factory tested.
