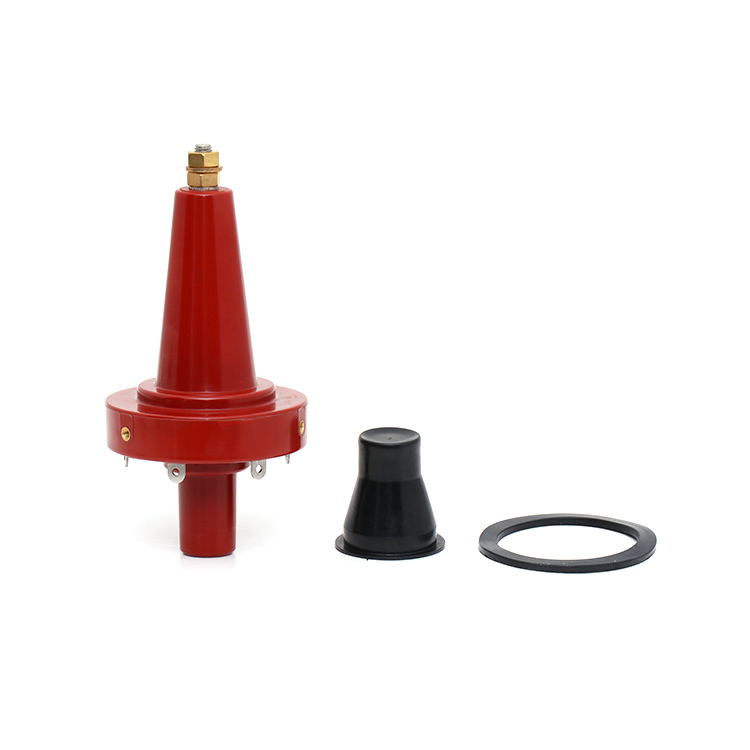

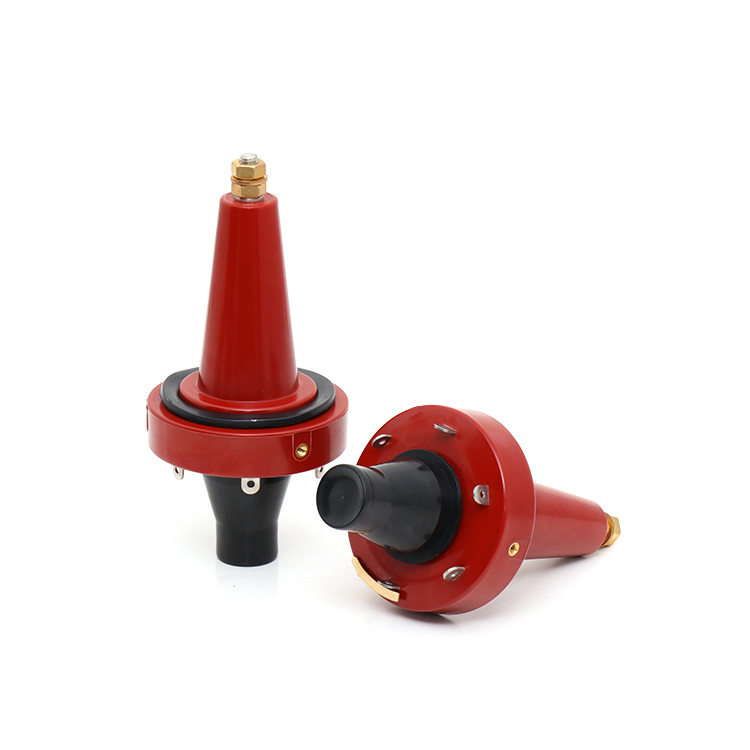

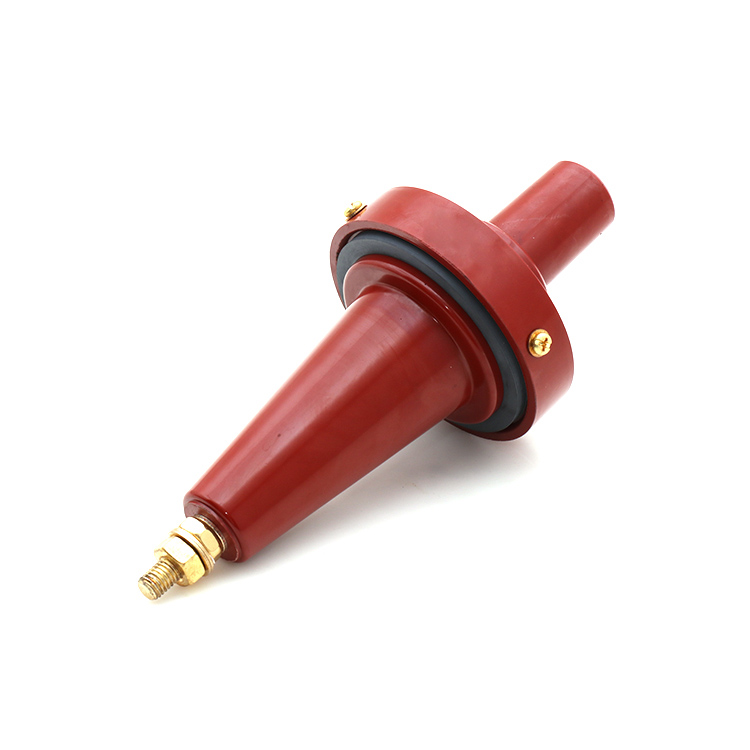

24 kV 250A Plug in Bushings （European Style）
Electrical Ratings
| ⚫Maximum system voltage (Um): | 24kV |
| ⚫Impulse: | 125kV |
| ⚫AC withstand (1Min): | 54kV |
| ⚫Continuous current: | 250A |
Application
For oil-insulated (R-temp, hydrocarbon, or silicon), apparatus, including switchgear, transformer, and capacitors. System voltage (Um) of 24kV .
For indoor and outdoor installations. Mounting in vertical or horizontal position.
Standards
Meets the interface requirements of CENELEC HD506 S1, ANSI/IEEE386, DIN 47636
Has been tested with mating parts to IEC 60502-4 and CENELEC HD629.1 S1
Quality Assurance
Our manufacturing facility is registered to ISO 9001-2000 by third party audit.
Required production test.100% factory tested.
