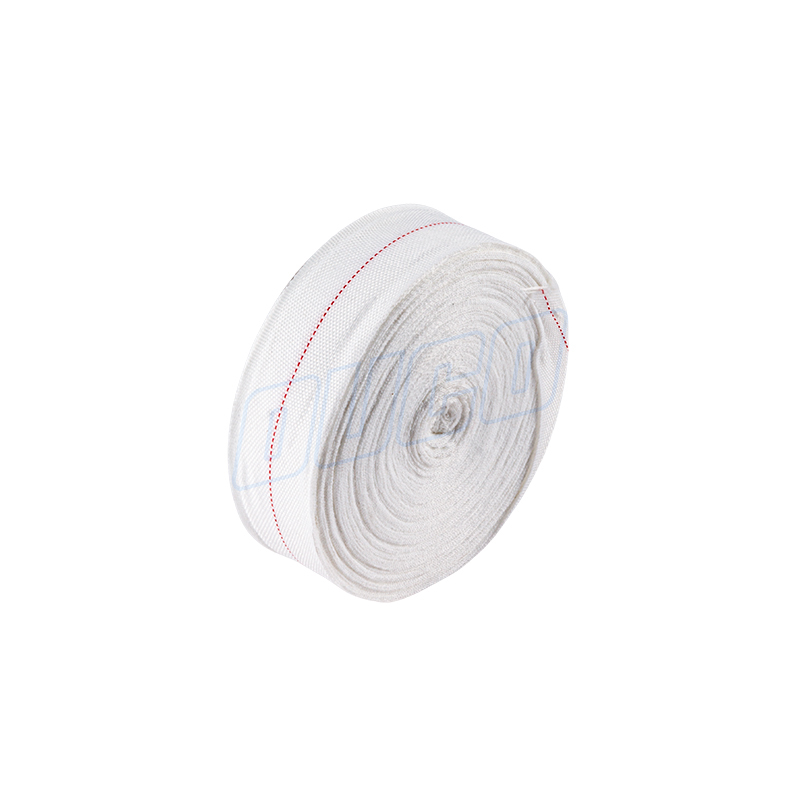

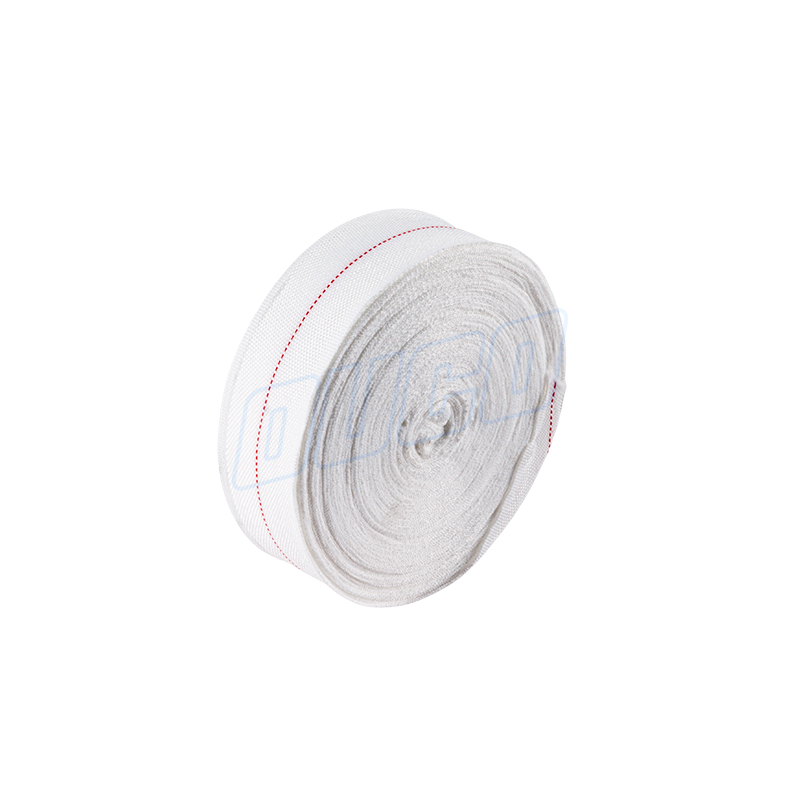

Polyester Shrinking Tape
Product Description
| ⚫ Insulation class:: | F Class (155℃) |
| ⚫ Color： | Colour line in the middle is available on request |
| ⚫Rolls: | 10mm, 15mm, 20mm, 25mm, 30mm, 50mm width |
| ⚫Thickness: | 0.13mm&0.25mm |
Brief Introduction of the Polyester Shrinking Tape
Polyester shrinking tape is made of a special compound fiber of thermal contraction.after binding and dried at 105℃ for 10 minutes,it will be shrunk to 70%,which is good at a solid binding and at a compatibility with transformers.in this way,it will be utilized in the transformer oil at 105℃ for a long time. Cotton tape made of pure cotton or 60%cotton.glassfiber tape made of glassfiber. Used in transformer and electrical motor.
It is a kind of banded-shaped insulation material woven by polyester fiber.
It has heat resistance and insulation property, high heat shrinkage rate, high hot tensile strength, no loose or dropping, and no pollution to the oil.
Application:
Polyester Shrinking Tape is suitable for the binding and fastening of product line packages and other components of motors, transformers, reactors, etc. The workpiece treated by the product can save the amount of impregnating paint, and the appearance is standardized and the overall integrity is good.
