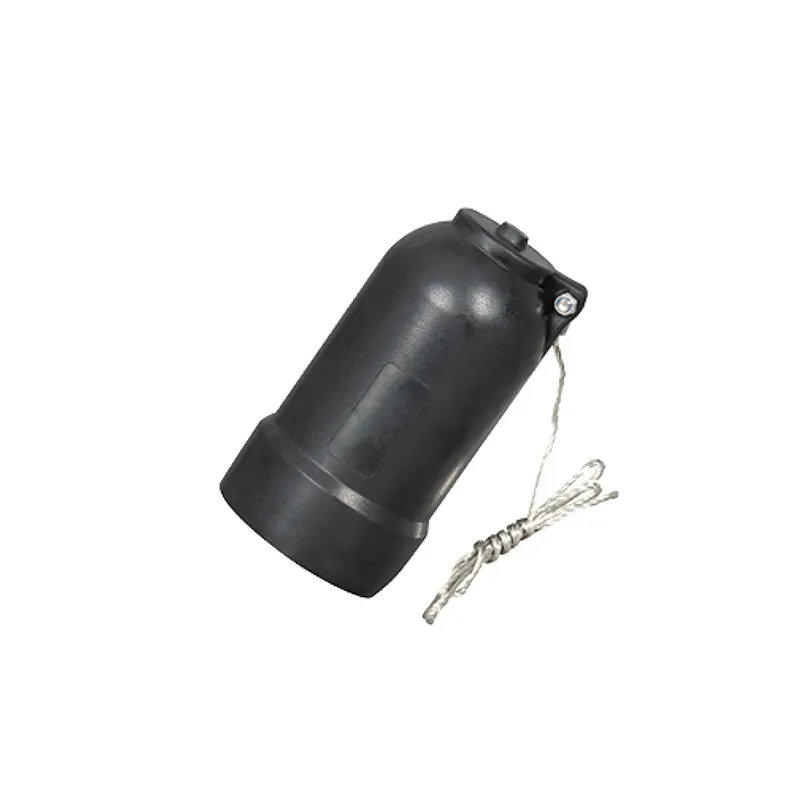

24kv Insulated Protective Cap
Specifications
| ⚫Rated Voltage | 24kV |
| ⚫Rated Current | 630A |
Product Structure
⚫ Operating Ring: Made of Stainless Steel, Convenient for product installation and operation.
⚫ Insulation Layer: Unique formula and mixing technology ensure the high-quality of prefabricated EPDM Insulation rubber.
⚫ Outer Semi-Conductive Layer: Prefabricated EPDM conductive rubber meets IEEE592 standard.
⚫ Internal Thread: The internal thread is M16-2
⚫ Grounding Eye: Ground the product through the grounding eye.
KEY FEATURES
The 24kV 630A Insulated Protective Cap can be used for temporary or permanent applications and provides a submersible, fully shielded insulated cap for energised bushings. When installed on an IEC bushing interface or junction, it is properly grounded using the attached drain wire, and provides physical seal and electrical insulation for bushing interfaces. The 24kV 630A insulated cap design incorporates peroxide-cured, EPDM insulation rubber, and a semi-conducting insert and outer shield.
